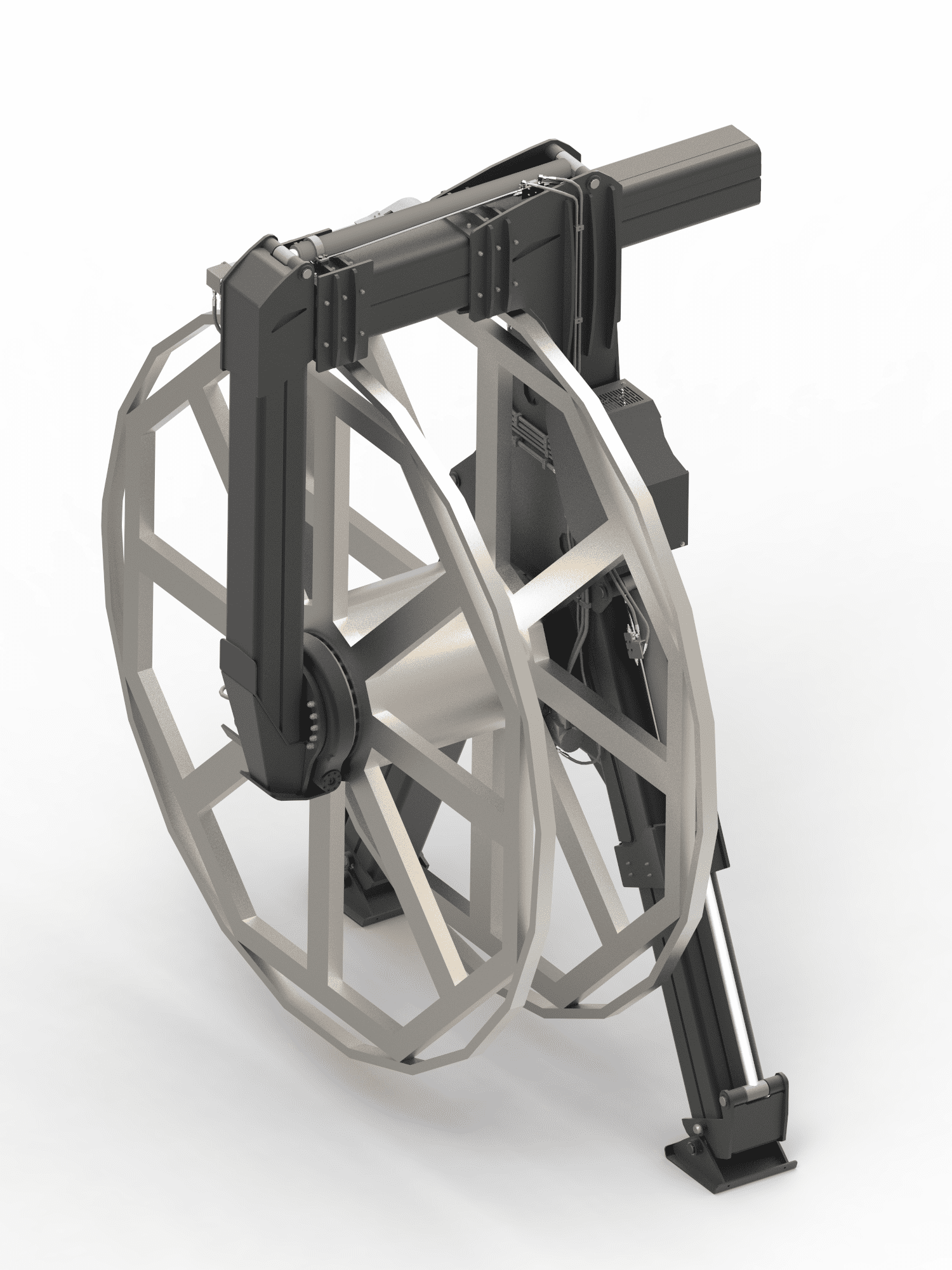

TOOL FOR CONVEYOR BELT MAINTENANCE UP TO 25T

Attachment that facilitates the replacement of conveyor belt belts. The attachment has two stabilization feet to be used during the unwinding / winding phase and a hydraulically removable column to allow you to grab or release the drum centered on the motorized washers. It is possible to move a drum on which the belt is wound up to 4m in diameter and 2.25m in length, with a capacity of up to 25t.

For the HTH range, this attachment is suitable only for HTH 35.12 and HTH 50.14 models.

SKU: ATT-08-008 Categories: ,

TECHNICAL FEATURES

  • Min. Extension Coil Housing: 1.192,50 mm
  • Max. Extension Coil Housing: 2.842,50 mm
  • Capacity: 25.000 kg
  • Automatic attachment recognition: Yes
  • Max height: 6.914 mm
  • Minimum height: 4.449 mm
  • Coil Rotation: 360°
