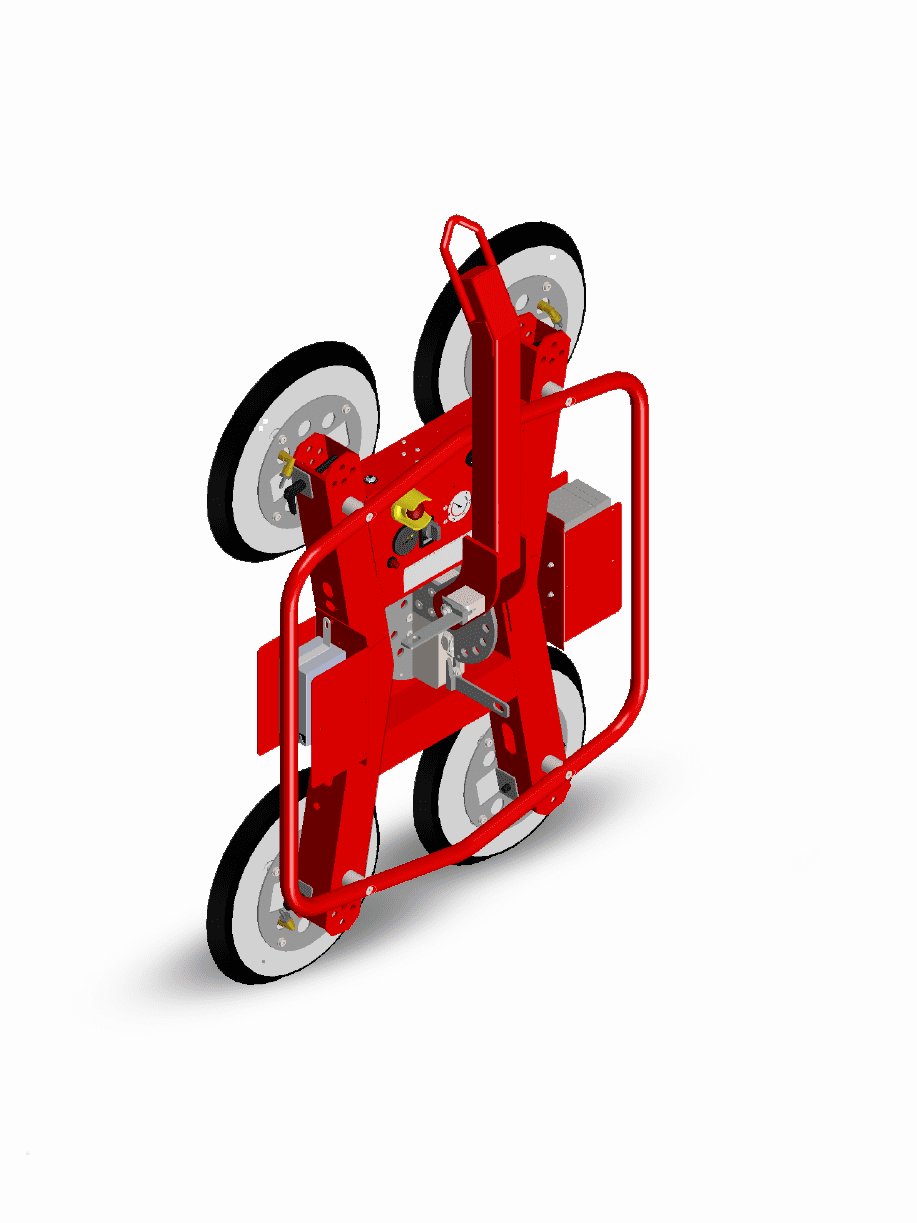

The Vacuum lifting attachment is ideal for safely moving glass, ceramic or metal plates. It allows loads up to 700 kg to be lifted in the horizontal and vertical position. Thanks to its modular structure, the lifting device can be perfectly adapted to the dimensions of the part. 4 additional suction cups are provided to handle even larger pieces.

A winch is required to handle the attachment (NOT INCLUDED)

The attachment is available with RTH, HTH and TH ranges.

SKU: ATT-08-007 Category:


  • Capacity: 700 kg
  • Horizontal max capacity (4 Suction Cups): 500 kg
  • Vertical max capacity (4 Suction Cups): 360 kg
  • Number of Suction Cups: 4+4 (BLSP 400 RL)
  • Vacuum System: Diaphragm pump; 2,1 m³/h, 12 V DC
