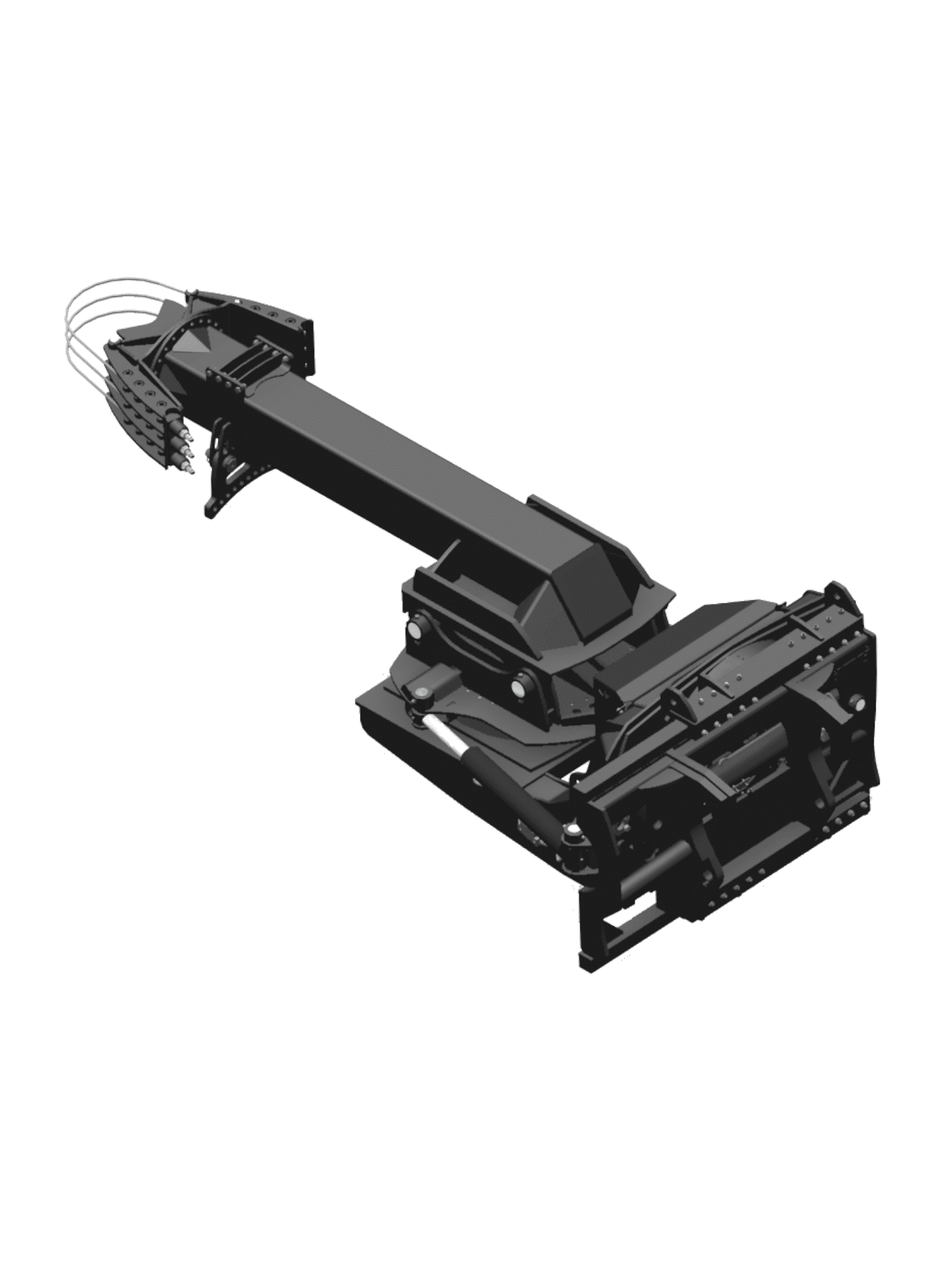

SUSPENSION CYLINDERS TOOL

In stock

Attachment specially designed for the safe removal of the suspension and front gearbox of dumpers.

This attachment must be installed with the Multi Tool Manipulator (ATT-08-004), which must be ordered separately.

It is compatible with HTH range, except for 10.10 model.

SKU: ATT-08-002 Category:
Wishlist Compare

TECHNICAL FEATURES

  • Automatic attachment recognition: Yes
  • (Hub + Suspension) Capacity: 9.000 kg
  • (Only Suspension) Capacity: 7 kg
  • Jib length: 2.962 mm
  • Jib Oscillation: 60°
  • Jib Rotation: 360°
  • Cylinder Rotation: 360°
  • Jib Side Shift: 300 mm
  • Cylinder Max. Diameter (without adapter): 530 mm
  • Cylinder Max. Diameter (with adapter): 400 mm
  • Cylinder Min. Diameter (without adapter): 370 mm
  • Cylinder Min. Diameter (with adapter): 250 mm
