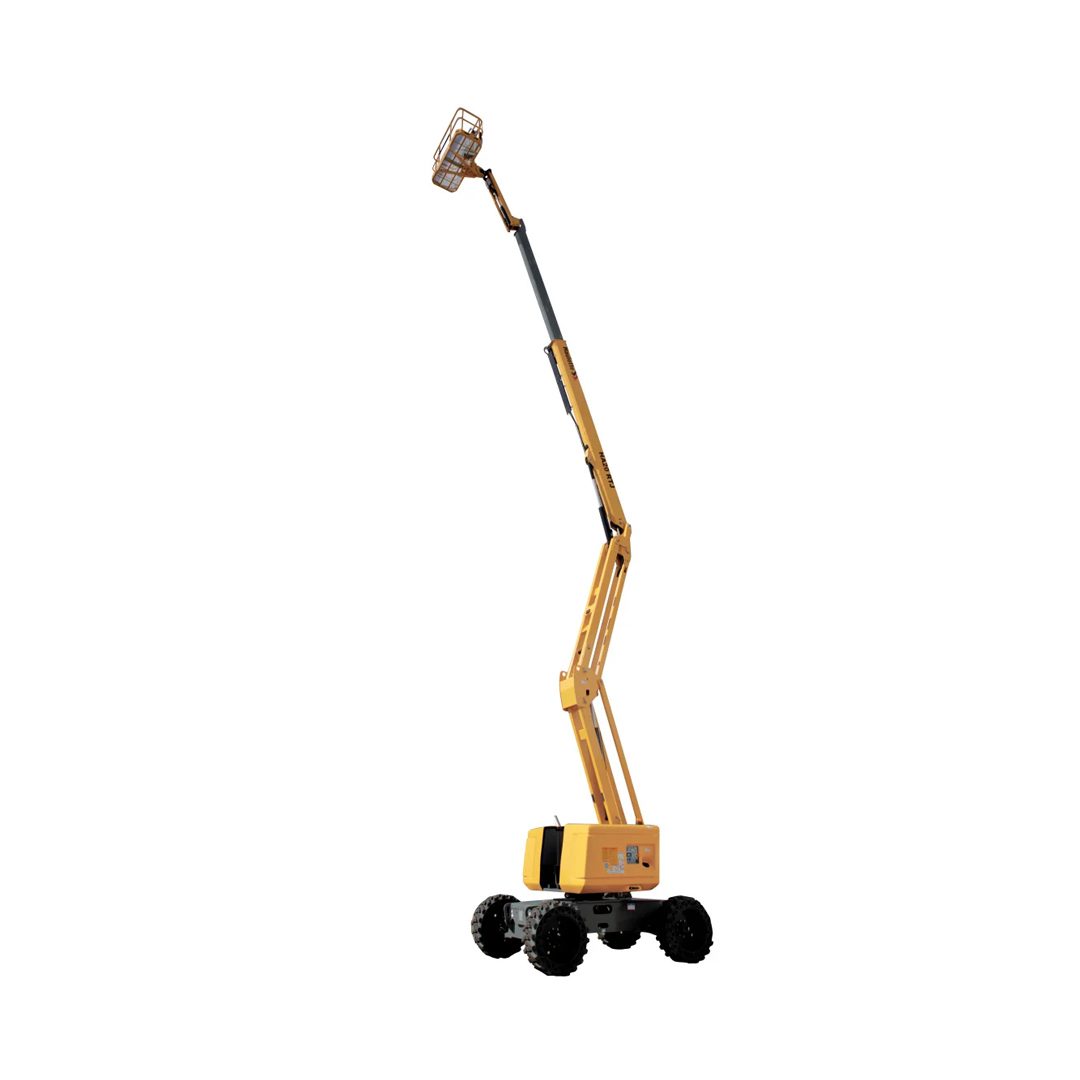

HA20 RTJ

Technical datasheet

  • Working height: 20.5m
  • Platform height: 18.5m
  • Maximum offset: 11.9m
  • Point of articulation: 8.51m
  • Maximum capacity: 250 kg (2 people) – 350 kg option
  • Platform dimensions: 1.80 x 0.8 m
  • Overall length: 8.6m
  • Overall width: 2.43m
  • Folded height: 2.47m
  • Storage/transport length:6.16m
  • Storage/transport height:2.98 m
  • Rear offset: 42cm
  • Turret rotation angle: 355° non-continuous
  • Platform rotation angle: 180° (-90° / +90°)
SKU: HA20 RTJ Categories: ,

The robustness of our range of RTJ articulated platforms allows you to work in the most restrictive environments and cope with the most demanding construction sites. Haulotte’s expertise guarantees you safe work on all its platforms, up to 43m. The HA20 RTJ articulated boom lift is equipped with an oscillating axle which adapts the position of the wheels to the irregularities of the terrain for good grip. This model also has 4 steering wheels allowing you to maneuver in small or congested spaces.

Additional information

Standard equipment

Haulotte Activ'Shield Bar (standard PRO model)
Haulotte Activ'Lighting System (standard PRO model)
Haulotte Stop Emission System
Haulotte Activ’Screen
4-wheel drive and 4-wheel steering (standard PRO model) / 4-wheel drive and 2-wheel steering (standard RTJ model)
Oscillating axle (PRO model only)
360° continuous rotation (PRO model only)
Simultaneous and proportional movements
Modular basket
