Technical datasheet

  • Working height: 16m
  • Platform height: 14m
  • Maximum offset: 8.3m
  • Point of articulation: 7.65 m
  • Maximum capacity: 230 kg (2 people)
  • Platform dimensions: 1.83 x 0.80 m
  • Overall length: 6.75 m
  • Overall width: 2.3m
  • Folded height: 2.3m
  • Transport height: 3m
  • Storage/transport length: 5.05m
  • Storage/transport height: 2.4m
  • Vertical swing angle of the pendulum: 140° (- 80° / + 60°)
  • Platform rotation angle: 165° (- 75° / + 90°)
  • Turret rotation angle: 355° non-continuous
SKU: HA16 RTJ Categories: ,

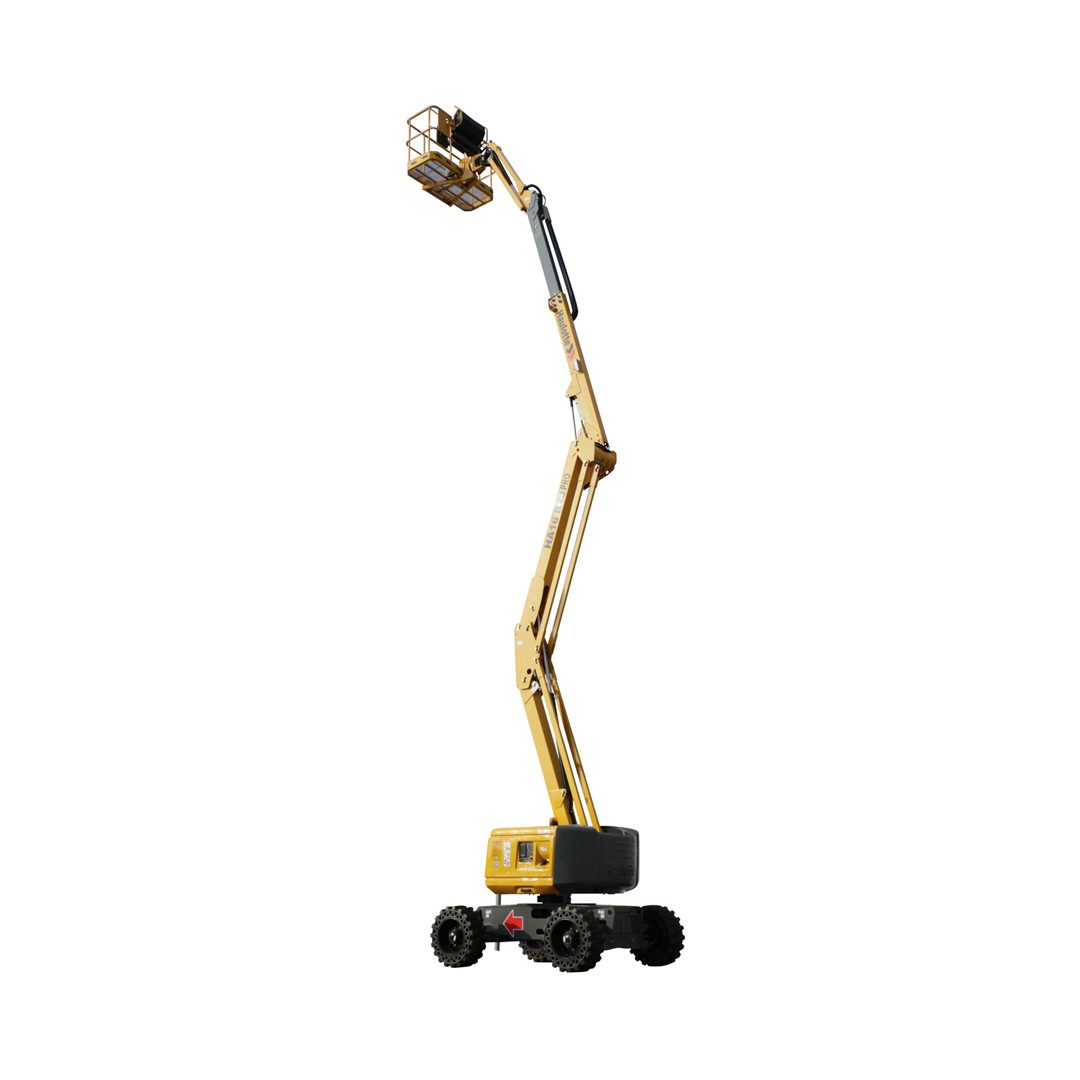

The robustness of the HA16 RTJ articulated platform allows it to work in the most restrictive environments and to cope with the most demanding construction sites. The HA16 RTJ articulated boom lift incorporates our latest innovations to offer you the safest work at height solutions on the market, improve the productivity of your sites and optimize the availability of your machines. It is equipped with Haulotte Activ’ Screen, a diagnostic and configuration screen, making it possible to simplify the daily lives of operators and technicians.

Additional information

Standard equipment

Haulotte Stop Emission System
Haulotte Activ'Screen on-board diagnostics on low console, with color screen
Universal telematics socket
4 wheels driving
2 steering wheels
Front oscillating axle (RTJ O) for better stability on rough terrain
4 simultaneous movements for optimal productivity
Anti-slip automatic differential lock for better off-road capability
High console protective cover
Tool tray
230 kg (2 people) in the basket without work envelope limitation
