HA12 CJ+

Technical datasheet

  • Working height: 11.68m
  • Platform height: 9.68m
  • Maximum offset: 7.22m
  • Point of articulation: 4.74 m
  • Maximum capacity: 230 kg (2 people)
  • Platform dimensions: 1.14 x 0.8m
  • Overall length: 5.64 m
  • Transport length: 4.2m
  • Overall width: 1.2m
  • Overall height: 1.99 m
  • Transport height: 2.6m
  • Rear offset: 0 cm
  • Vertical swing angle of the pendulum: 132.2° (+63.5/-68.7)
  • Horizontal swing angle of the pendulum: 180° (-90/+90)
SKU: HA12 CJ+ Categories: ,

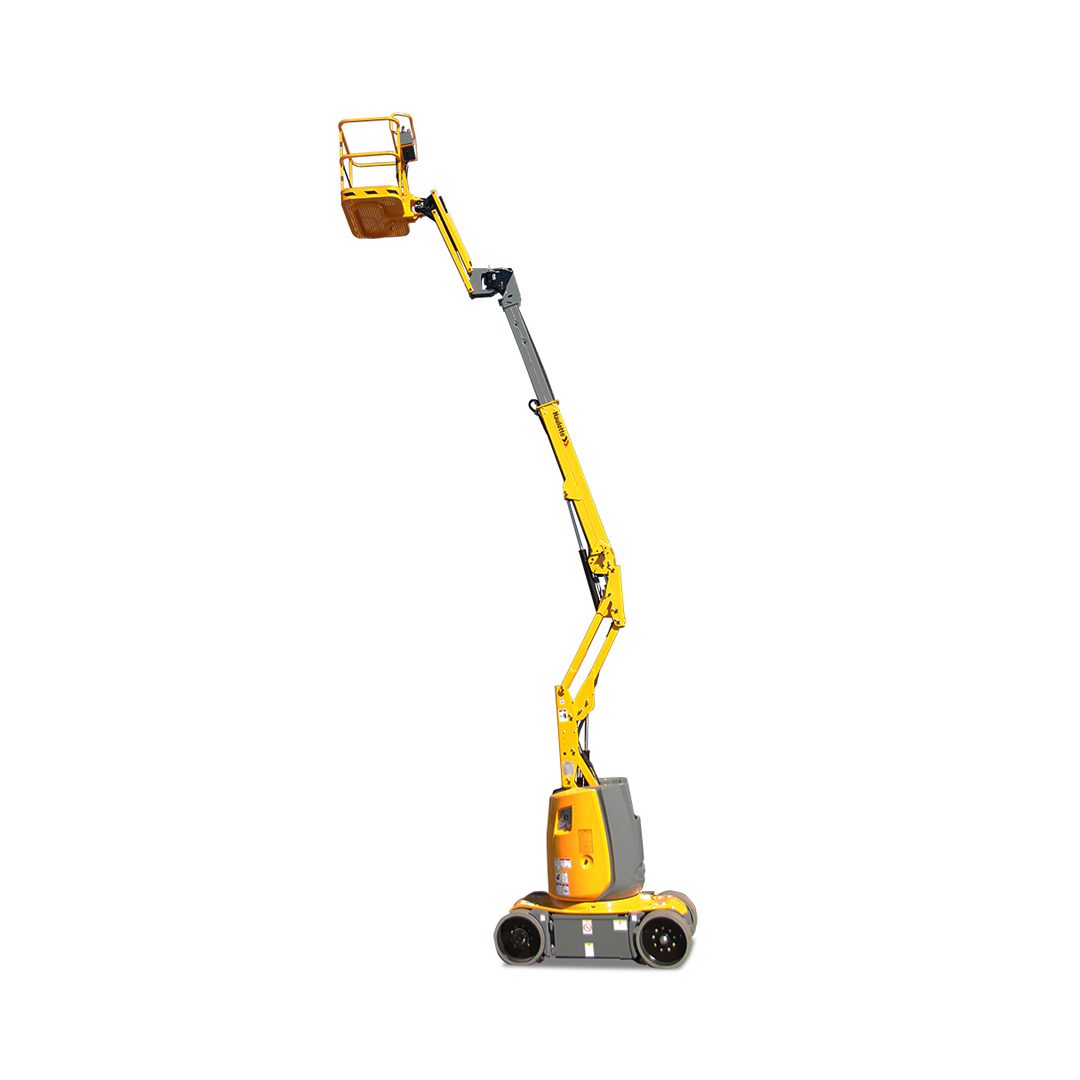

The Haulotte HA12CJ and HA12CJ+ electric articulating boom lifts are very robust and reliable booms that offer exceptional performance both indoors and outdoors. They have a compact width of 1.20 metres and a towed height of 1.99 metres, allowing for easy access through double doorways and effective manoeuvrability in the tightest spaces. With full proportional controls providing optimal productivity and comfort, these boom lifts offer a working height of 11.68 metres and a lift capacity of 250 kg on the HA12CJ and 200 kg for the HA12CJ+.

Additional information

Standard equipment

2 wheel drive
2 steering wheels
Wheels with non-marking tires
Ergonomic control consoles
Mechanical locking of turret orientation
Automatic platform upgrade
Load limiter in the basket
