5,5.19P

TECHNICAL FEATURES

  • Stabilisers: Pivoting
  • Lifting capacity: 5.500 kg
  • Capacity at maximum height: 3.000 kg
  • Lifting height: 18,80 m
  • Reach: 14,10 m
  • Engine: Deutz TCD 3,6 L4 Stage V
  • Rated power: 74,40 kW (101,20 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6,35 m
  • Width: 2,48 m
  • Ground clearance: 400 mm
  • Unladen weight: 13.500 kg
  • Travel speed: 35 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
SKU: 5,5.19P Categories: ,

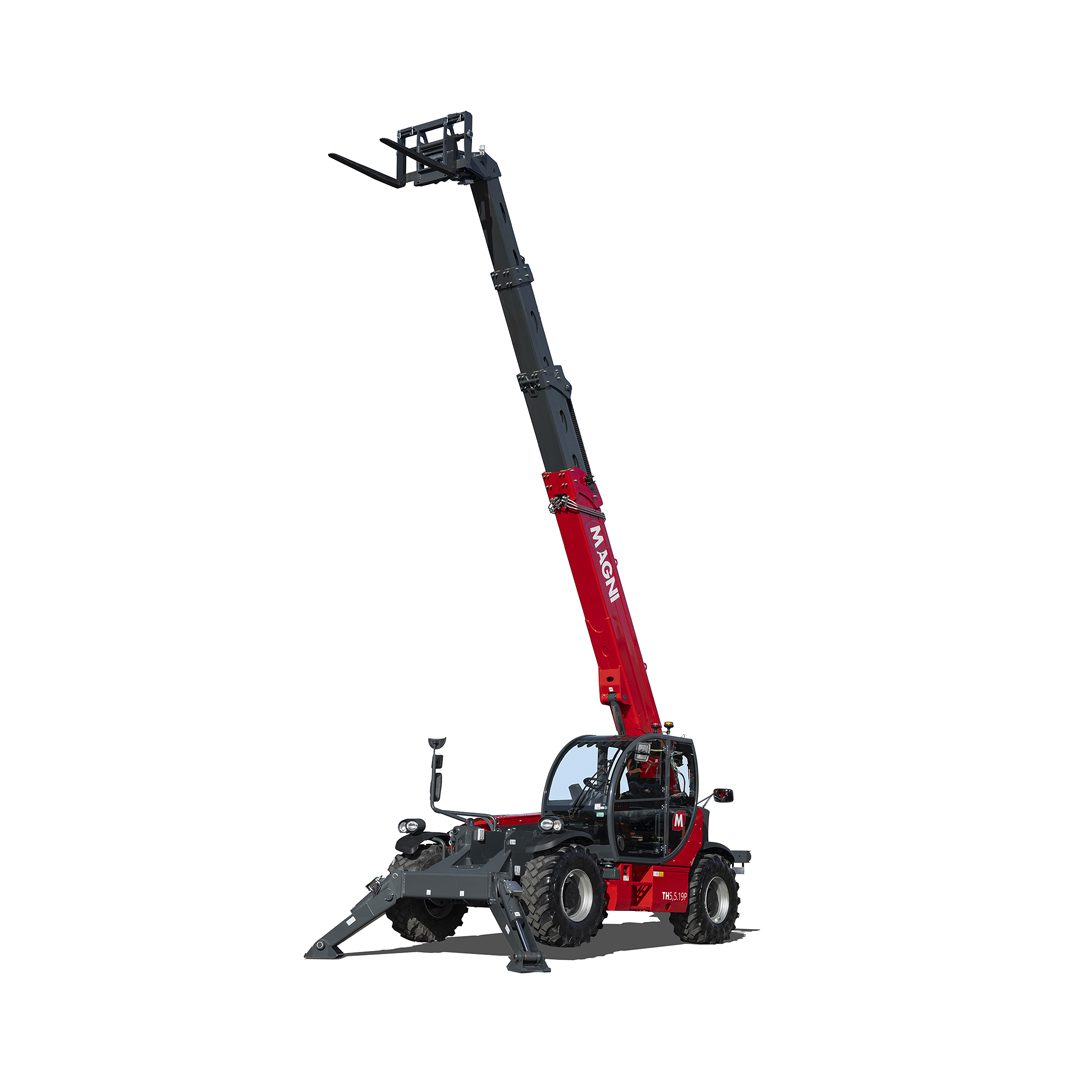

The TH 5,5.19 P is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 74,4 kW engine, it can safely reach a height of 18.80 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. This model is equipped with the levelling system on tyres allowing the operator to adjust the  inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Additional information

Standards met

EN 1459-X : concerning standards on safety requirements for variable reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
