6.20

TECHNICAL FEATURES

  • Stabilisers: Pivoting
  • Lifting capacity: 6.000 kg
  • Capacity at maximum height: 2.000 kg
  • Lifting height: 19,20 m
  • Reach: 14,40 m
  • Engine: Deutz TCD 3,6 L4 Stage V
  • Rated power: 100 kW (136 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6,42 m
  • Width: 3,25 m
  • Ground clearance: 420 mm
  • Unladen weight: 14.200 kg
  • Travel speed: 40 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
SKU: 6.20 Categories: ,

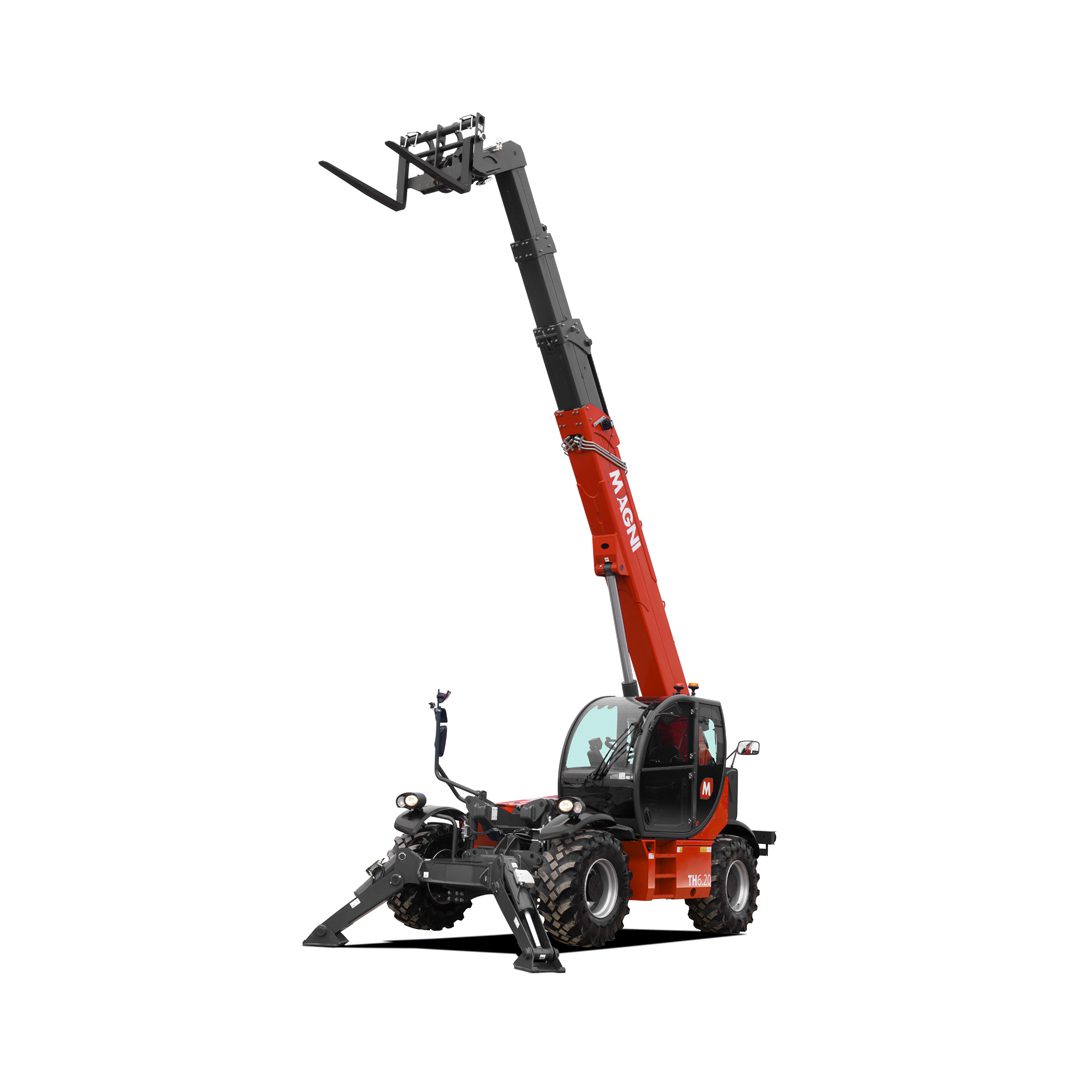

The TH 6.20 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 19,20 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. The TH 6.20 is equipped as standard with the side-shift system. It allows for lateral movement of the rear part of the chassis and the boom, around the longitudinal axis of the machine, correcting the position of the load without moving the unit. This system allows for a +/-5° shift which corresponds to a +/- 1,5 m movement when the boom is fully extended, whatever the attachment fitted.

Additional information

Standards met

EN 1459-X : concerning standards on safety requirements for variable reach trucks
EN 13000 : concerning standards for mobile cranes
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
