5,5.24

TECHNICAL FEATURES

  • Stabilisers: Pivoting
  • Lifting capacity: 5.500 kg
  • Capacity at maximum height: 1.500 kg
  • Lifting height: 23,90 m
  • Reach: 19,10 m
  • Engine: Deutz TCD 3,6 L4 Stage V
  • Rated power: 100 kW (136 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6,96 m
  • Width: 3,37 m
  • Ground clearance: 420 mm
  • Unladen weight: 16.100 kg
  • Travel speed: 40 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
SKU: 5,5.24 Categories: ,

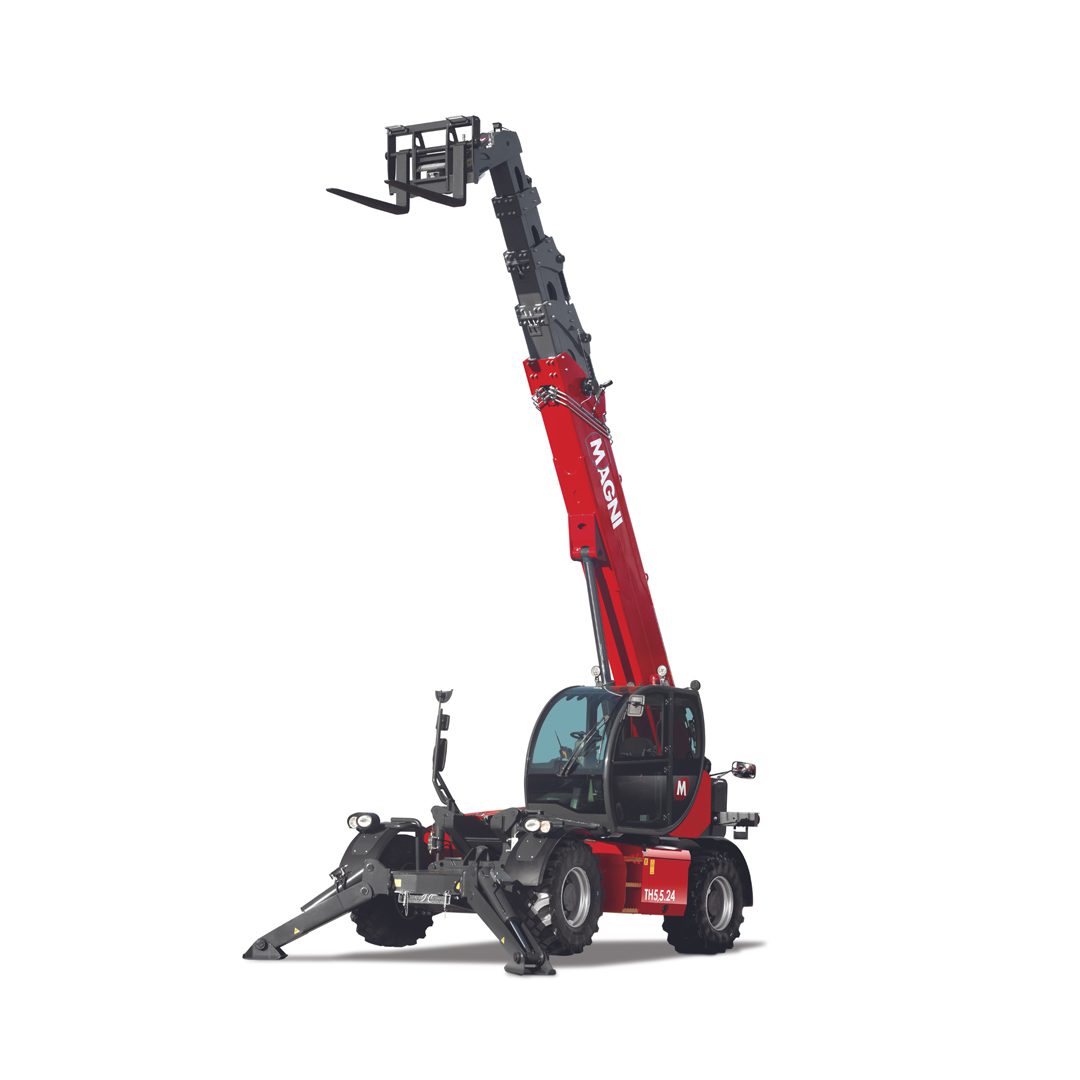

The TH 5,5.24 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 23.90 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

Additional information

Standards met

EN 1459-X : concerning standards on safety requirements for variable reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
