5.8P

TECHNICAL FEATURES

  • Lifting capacity: 5.000 kg
  • Capacity at maximum height: 3.500 kg
  • Lifting height: 7,60 m
  • Reach: 4,30 m
  • Engine: Deutz TCD 3,6 L4 Stage V
  • Rated power: 74,40 kW (101,20 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 5,23 m
  • Width: 2,50 m
  • Ground clearance: 290 mm
  • Unladen weight: 8.500 kg
  • Travel speed: 40 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
SKU: 5.8P Categories: ,

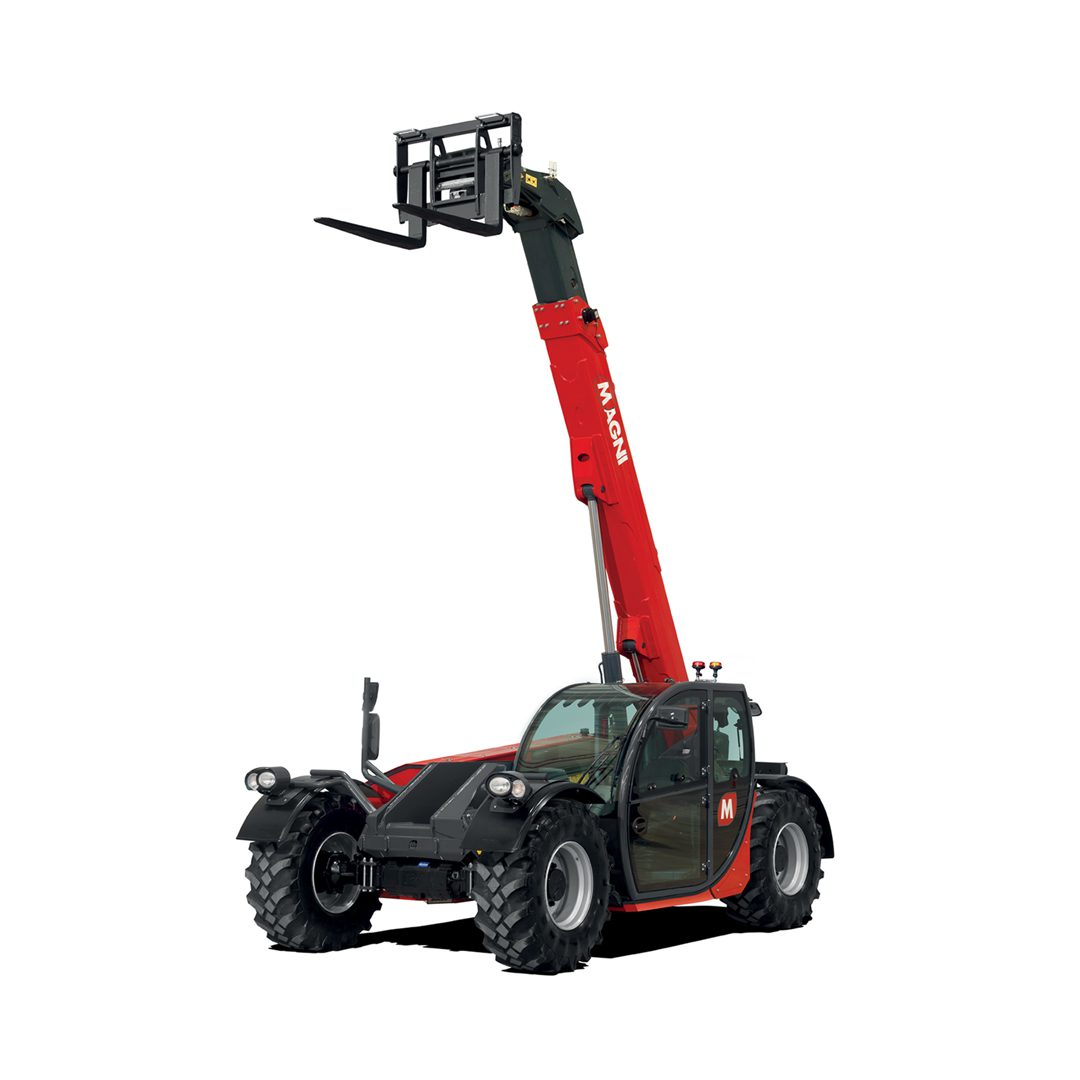

The TH 5.8 P is a fixed telescopic handler especially suitable for light industry. Powered by a Deutz 75 kW engine, it can safely reach a height of 7.60 m on rough terrain thanks to its 4-wheel drive. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. This model is equipped with the levelling system on tyres allowing the operator to adjust the  inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Additional information

Standards met

2006/42/CE : EU Machines Directive
EN 1459-X : concerning standards on safety requirements for variable reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
EN 13000 : concerning standards for mobile cranes
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
