5.23

TECHNICAL FEATURES

  • Stabilisers: Pivoting
  • Lifting capacity: 4.999 kg
  • Capacity at maximum height: 2.200 kg
  • Lifting height: 22,80 m
  • Reach: 19,50 m
  • Engine: Deutz TCD 3,6 L4 – Stage V
  • Rated power: 100 kW (136 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 7,18 m
  • Width: 2,55 m
  • Ground clearance: 320 mm
  • Unladen weight: 16.400 kg
  • Travel speed: 40 km/h
  • Rotation: 360° (continue)
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes
SKU: 5.23 Categories: ,

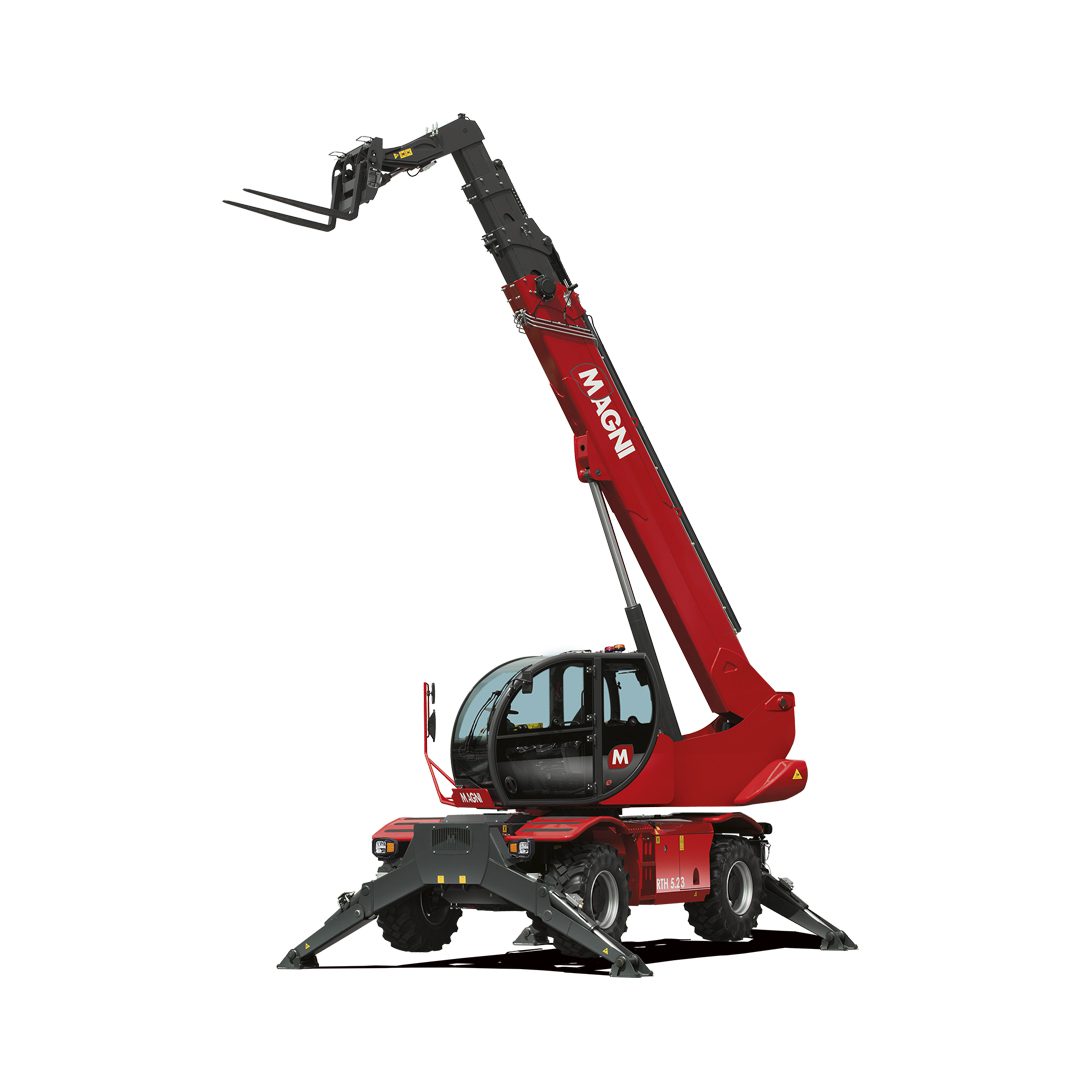

The RTH 5.23 is a compact yet high-performance rotating telescopic handler. It can lift loads up to a height of 23 m and is equipped with pivoting stabilisers to guarantee stability and safety during all manoeuvres. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.

Additional information

Standards met

2006/42/CE : EU Machines Directive
EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
EN 13000 : concerning standards for mobile cranes
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
