• Stabilisers: Scissors
  • Lifting capacity: 6.000 kg
  • Capacity at maximum height: 4.000 kg
  • Lifting height: 22 m
  • Reach: 18,40 m
  • Engine: Deutz TCD 3,6 L4 Stage V
  • Rated power: 100 kW (136 hp) 2.200 rpm
  • Hydraulic flow: 130 l/min
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 7,04 m
  • Width: 2,53 m
  • Ground clearance: 330 mm
  • Unladen weight: 19.100 kg
  • Travel speed: 40 km/h
  • Rotation: 360° (continue)
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes
SKU: 6.22 Categories: ,

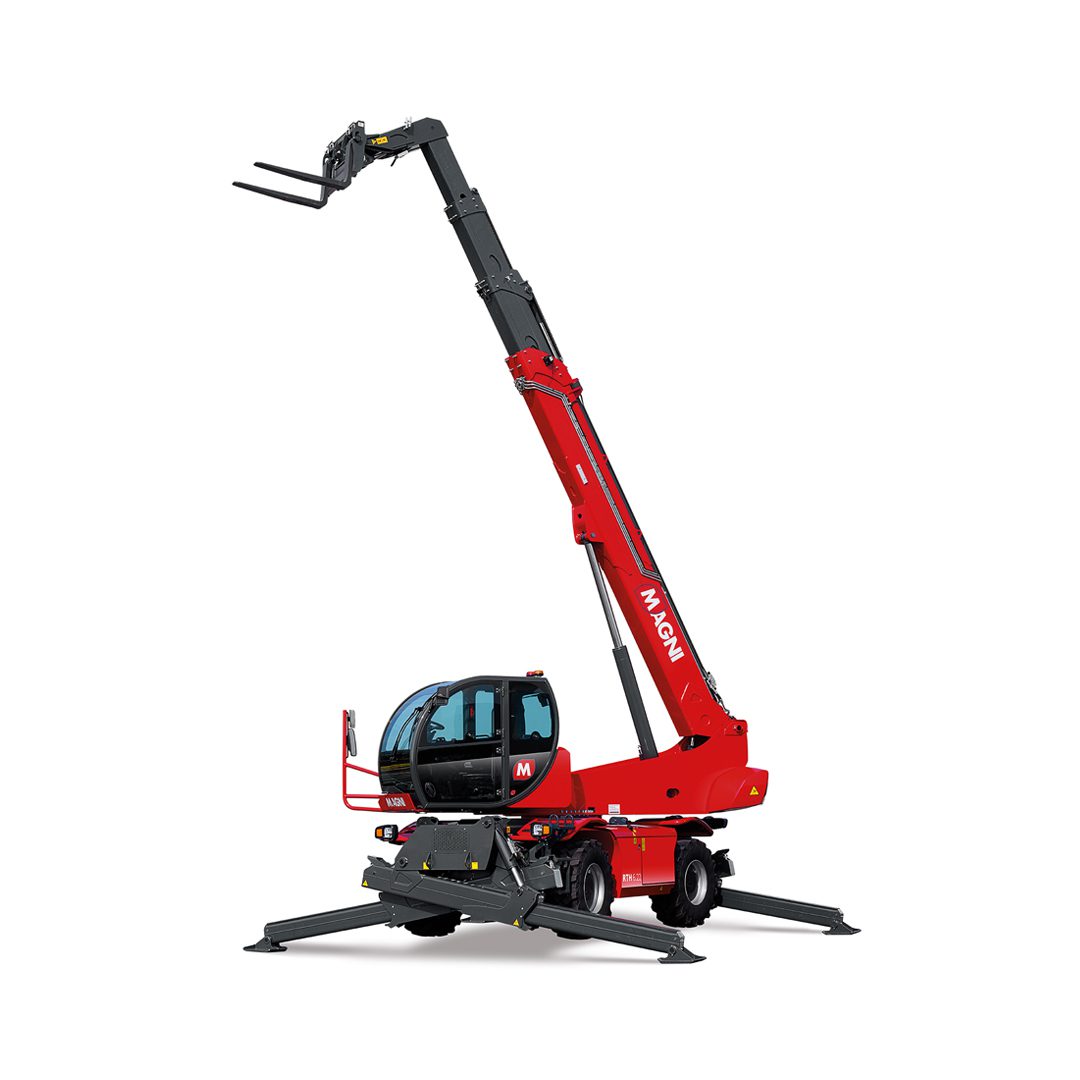

The RTH 6.22 is a rotating telescopic handler that is ideal both for construction sites and for-hire fleets. Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry. It is equipped with pivoting stabilizers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.

Additional information

Standards met

EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
