10.37

TECHNICAL FEATURES

  • Stabilisers: Scissors
  • Lifting capacity: 10.300 kg
  • Capacity at maximum height: 8.000 kg
  • Lifting height: 36,70 m
  • Reach: 30,50 m
  • Engine: Volvo TAD 583 VE Stage V
  • Rated power: 175 kW (238 hp) 2.300 rpm
  • Hydraulic flow: 170 l/min
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 9,95 m
  • Width: 2,54 m
  • Ground clearance: 340 mm
  • Unladen weight: 36.900 kg
  • Travel speed: 25 km/h
  • Rotation: 360° (continue)
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes
SKU: 10.37 Categories: ,

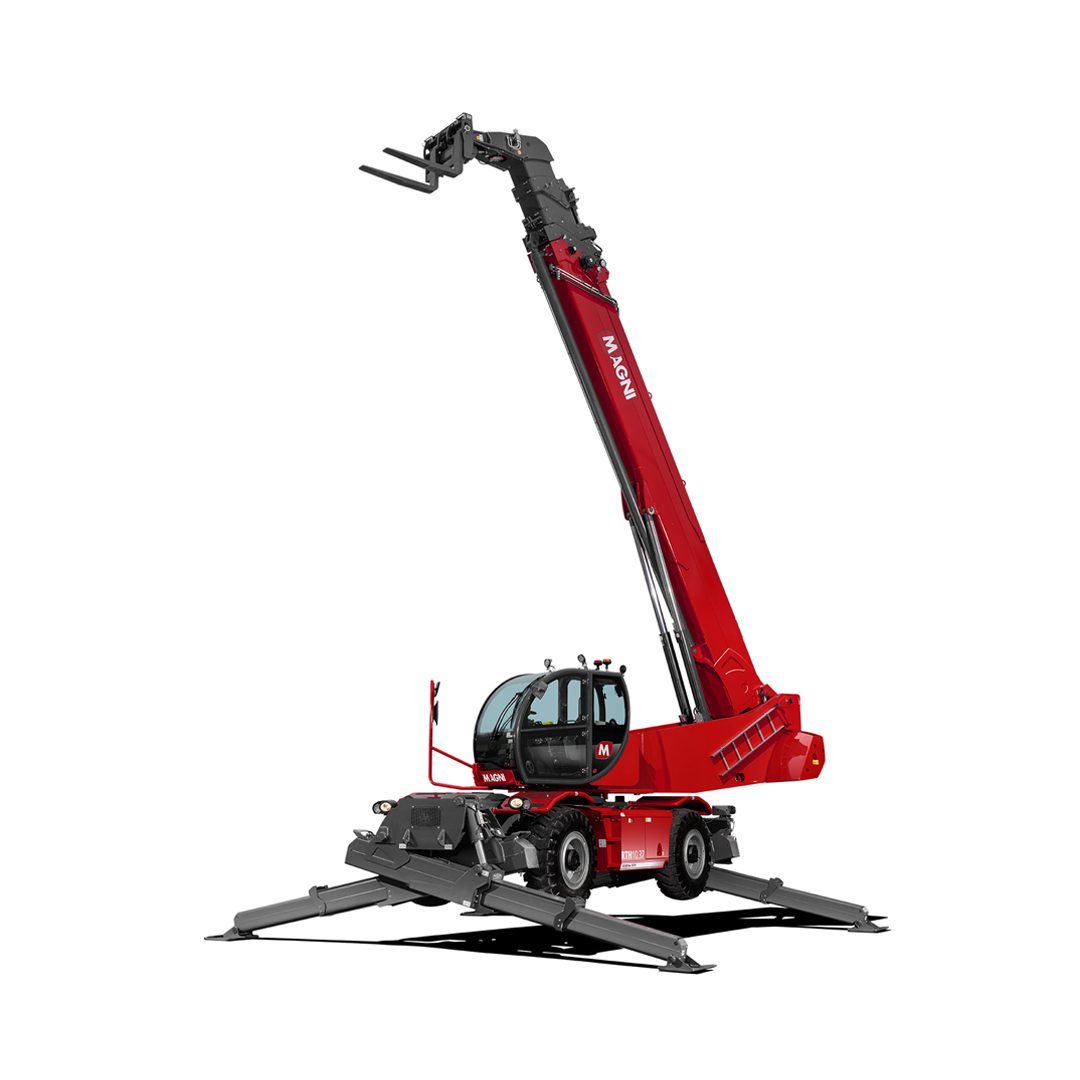

The RTH 10.37 is a rotating telescopic handler that is ideal both for construction sites and for-hire fleets. Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry. It is equipped with pivoting stabilizers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.

Additional information

Standards met

EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
