13.26

TECHNICAL FEATURES

  • Stabilisers: Scissors
  • Lifting capacity: 13.000 kg
  • Capacity at maximum height: 8.000 kg
  • Lifting height: 26,20 m
  • Reach: 21,30 m
  • Engine: Volvo TAD 583 VE – Stage V
  • Rated power: 175 kW (238 hp) 2.300 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 8,78 m
  • Width: 2,54 m
  • Ground clearance: 340 mm
  • Unladen weight: 30.600 kg
  • Travel speed: 25 km/h
  • Rotation: 360° (continue)
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes
SKU: 13.26 Categories: ,

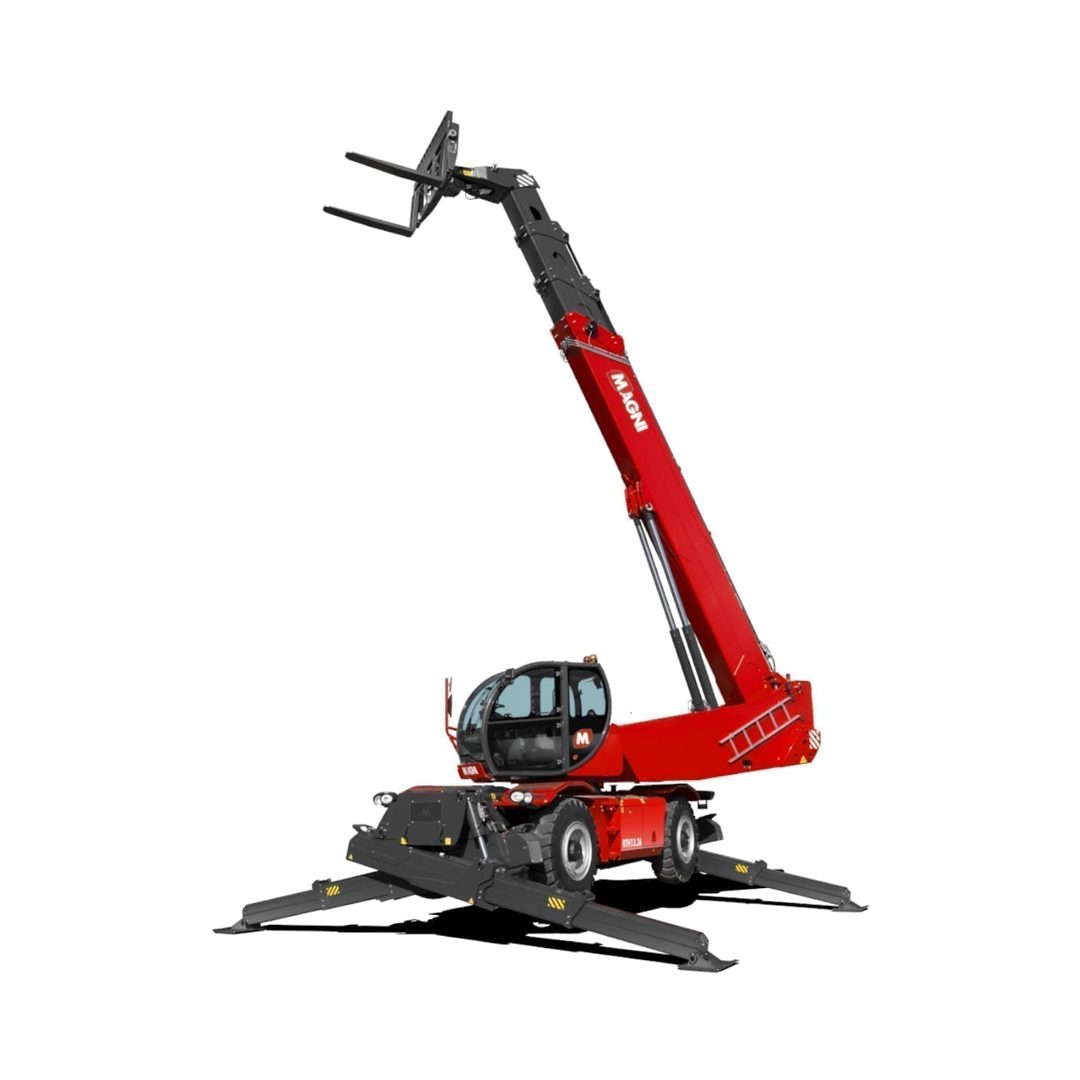

RTH 13.26 is the most powerful rotating telescopic handler in the world. It has a maximum lifting capacity of 26 m and can lift loads of up to 13 tonnes. It is the perfect partner for working on construction or industrial sites where very heavy loads must be lifted to great heights. In order to guarantee operator safety, the leveler and scissor stabilizers are equipped with a very large support surface in order to ensure maximum stability even in tight spaces, offering maximum ground holding on all terrain types. Even when it is only partially stabilized, the machine is designed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they allow the machine to work at its full height over 360°, allowing it to operate on a much wider stabilization base. It is compatible with a wide range of accessories thanks to its RFID system which allows automatic recognition of attachments and creation of dynamic load charts. This telescopic handler is the ideal solution to innumerable requirements in the construction and manufacturing sector.

Additional information

Standards met

2006/42/CE : EU Machines Directive
EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
EN 13000 : concerning standards for mobile cranes
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
