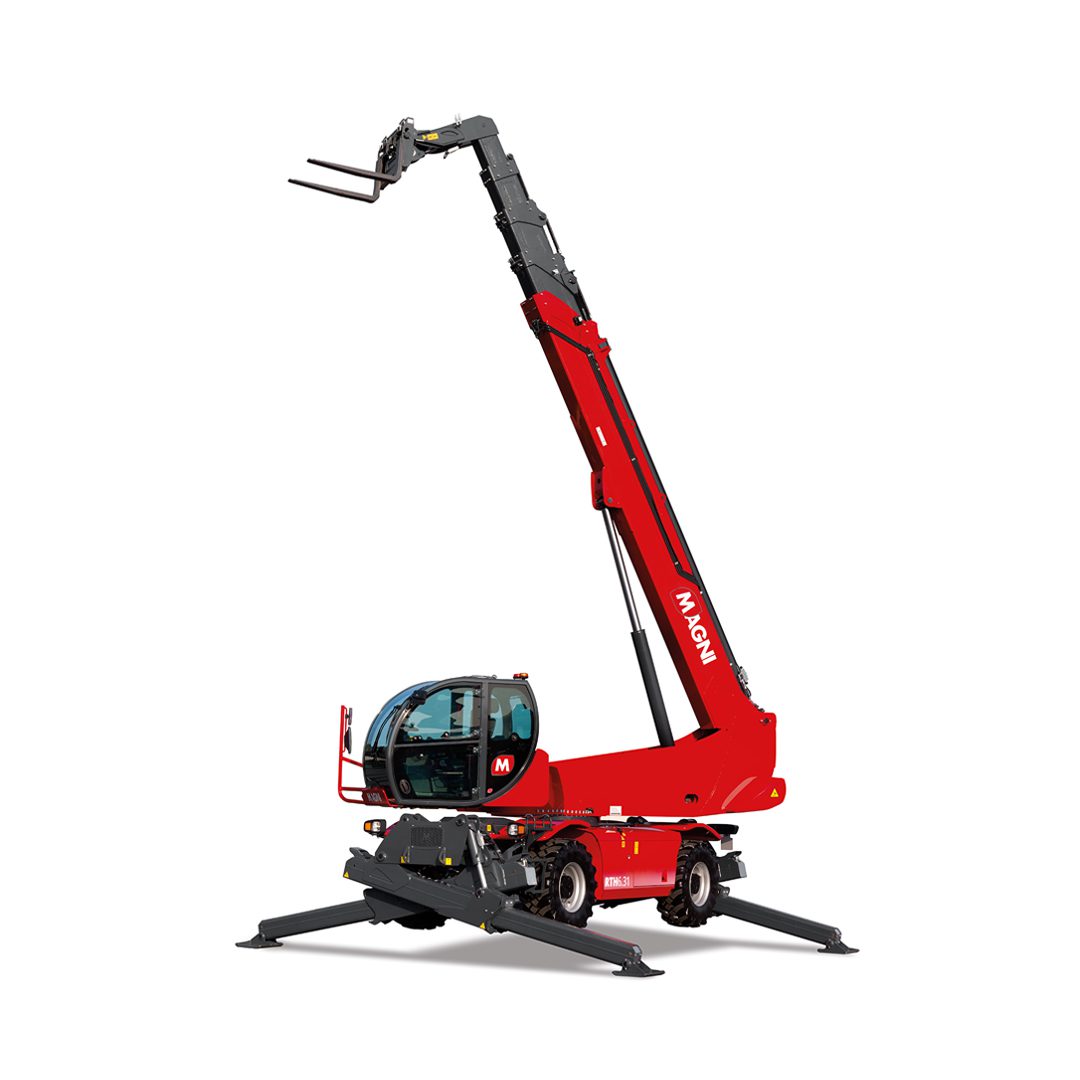

The RTH 6.31 is a rotating telescopic handler that is ideal both for construction sites and for-hire fleets. Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry. It is equipped with pivoting stabilizers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.
6.31
TECHNICAL FEATURES
- Stabilisers: Scissors
- Lifting capacity: 6.000 kg
- Capacity at maximum height: 2.500 kg
- Lifting height: 30,80 m
- Reach: 26,90 m
- Engine: Volvo TAD 582 VE Stage V
- Rated power: 160 kW (218 hp) 2.300 rpm
- Hydraulic flow: 170 l/min
- Number of gears: 2/2
- Hydraulic system: 350 bar (Load Sensing)
- Length: 7,95 m
- Width: 2,53 m
- Ground clearance: 310 mm
- Unladen weight: 22.700 kg
- Travel speed: 40 km/h
- Rotation: 360° (continue)
- Climate control as standard: Yes
- Automatic attachment recognition: Yes
- Reversable fan drive: Yes
Additional information
Standards met | EN 1459-2 : concerning standards for slewing variable-reach trucks |
---|
