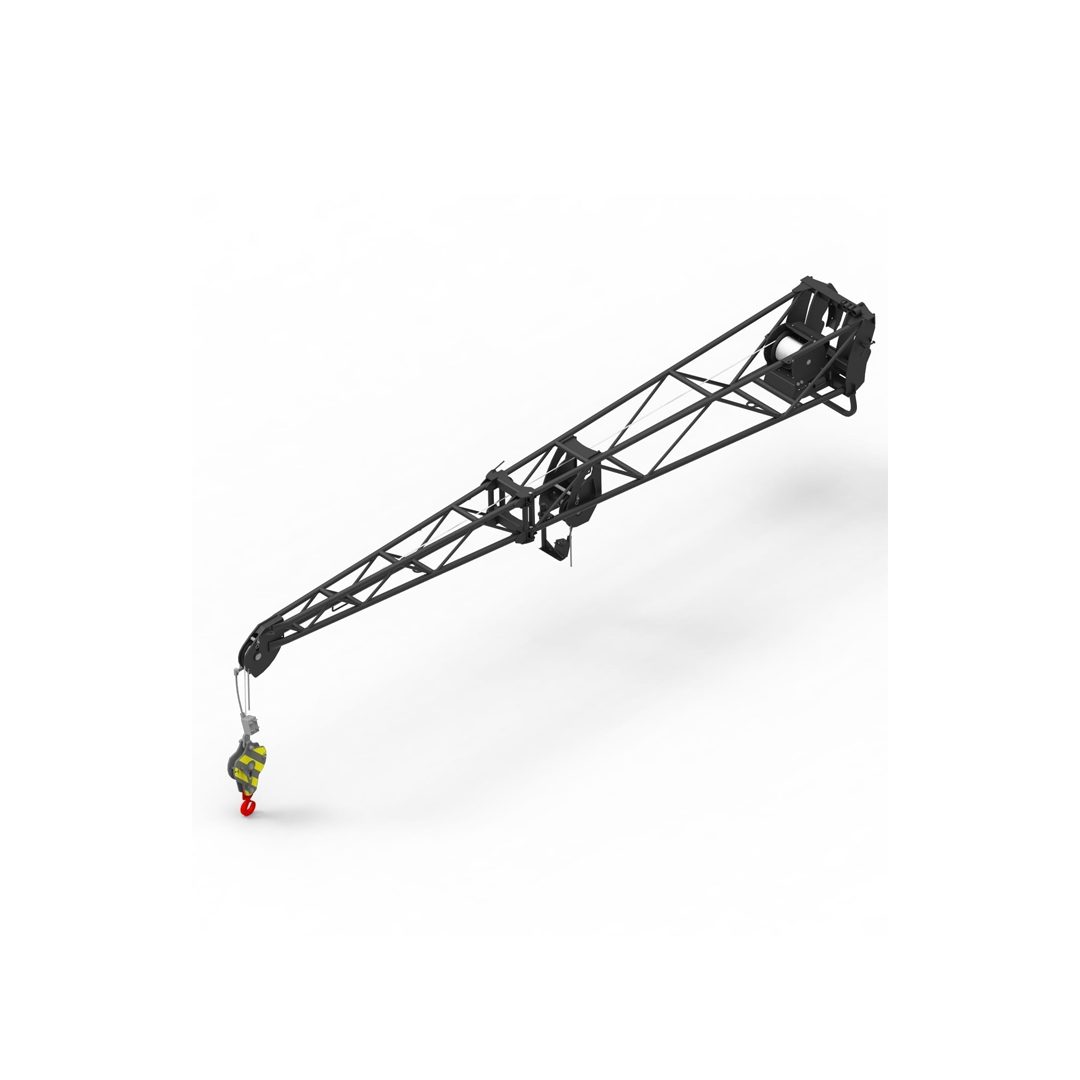

JIB WITH WINCH 1,500/800 KG

Jib with integrated winch on attachment which can be folded and configured for two capacities. Fully extended, with length of 7 metres, it has a single capacity of 800 kg; folded, with 3.3 metre length, it has a dual capacity of 1,500 kg. Winch equipped with rope pressure roller and hydraulic limit switch system for rope raising/lowering.

This attachment is available for RTH range.

SKU: ATT-04-007 Category:

TECHNICAL FEATURES

  • Load capacity (closed): 1.500 kg
  • Load capacity (open): 800 kg
  • Length (closed): 3.300 mm
  • Length (open): 7.100 mm
  • Cable diameter: 10 mm
  • Single pull cable length: 44 mm
  • Double pull cable length: 24 mm
  • Single pull cable extension rate: 48 m/min
  • Double pull cable extension rate: 24 m/min
  • Automatic attachment recognition: Yes
