30.12

TECHNICAL FEATURES

  • Lifting capacity: 30.000 kg
  • Capacity at maximum height: 18.000 kg
  • Lifting height: 11,72 m
  • Reach: 6,86 m
  • Engine: Volvo TAD 883 VE – Stage V
  • Rated power: 235 kW (320 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 7,95 m
  • Width: 3 m
  • Ground clearance: 550 mm
  • Unladen weight: 40.900 kg
  • Travel speed: 25 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes

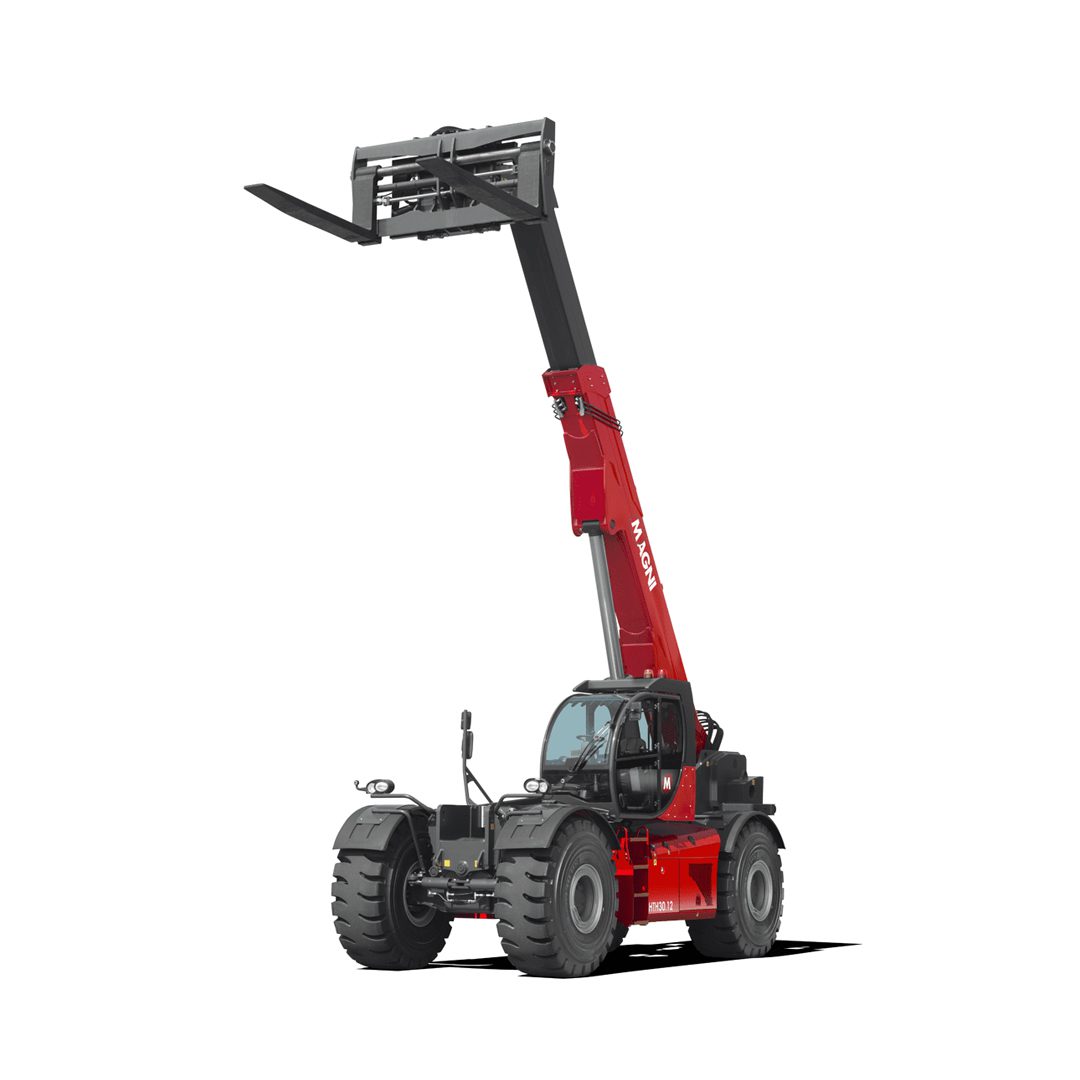

The HTH 30.12 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 30 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains. The comfort and 360° visibility offered by Magni’s patented cab allow the operator to work under the optimum conditions, and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails or other metal structures. It is the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or moving conveyor belts.

Additional information

Standards met

2006/42/CE : EU Machines Directive
EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 13000 : concerning standards for mobile cranes
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
