16.10

TECHNICAL FEATURES

  • Lifting capacity: 16.000 kg
  • Capacity at maximum height: 9.000 kg
  • Lifting height: 9,50 m
  • Reach: 5,10 m
  • Engine: Volvo TAD 582 VE – Stage V
  • Rated power: 160 kW (218 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6,38 m
  • Width: 2,57 m
  • Ground clearance: 440 mm
  • Unladen weight: 19.200 kg
  • Travel speed: 25 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes

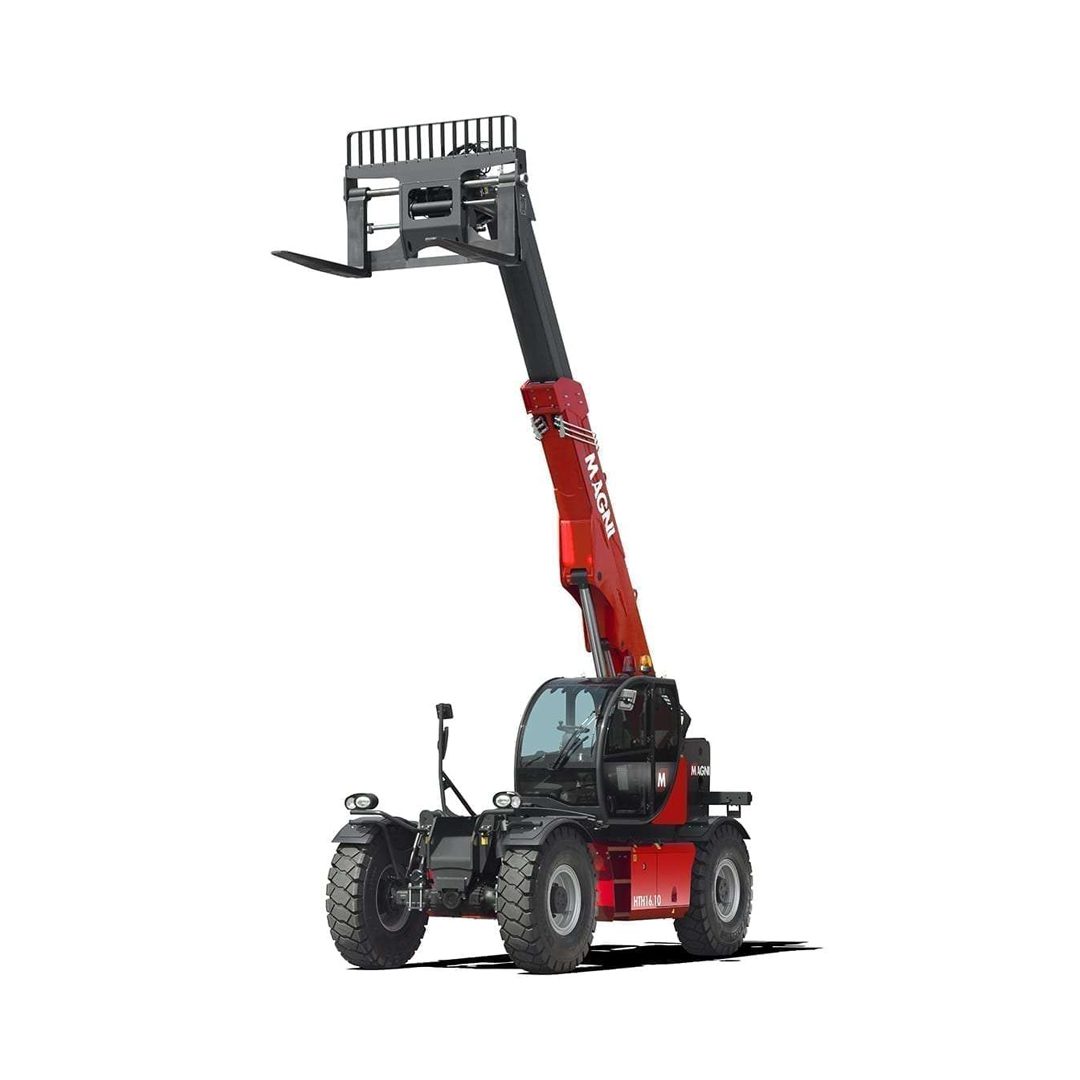

The HTH 16.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 16 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

Additional information

Standards met

2006/42/CE : EU Machines Directive
EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 13000 : concerning standards for mobile cranes
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
