24.11

TECHNICAL FEATURES

  • Lifting capacity: 24.000 kg
  • Capacity at maximum height: 14.000 kg
  • Lifting height: 10,50 m
  • Reach: 5,65 m
  • Engine:  Volvo TAD 583 VE – Stage V
  • Rated power: 175 kW (238 hp) 2.300 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6,92 m
  • Width: 2,96 m
  • Ground clearance: 430 mm
  • Unladen weight: 29.700 kg
  • Travel speed: 25 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes

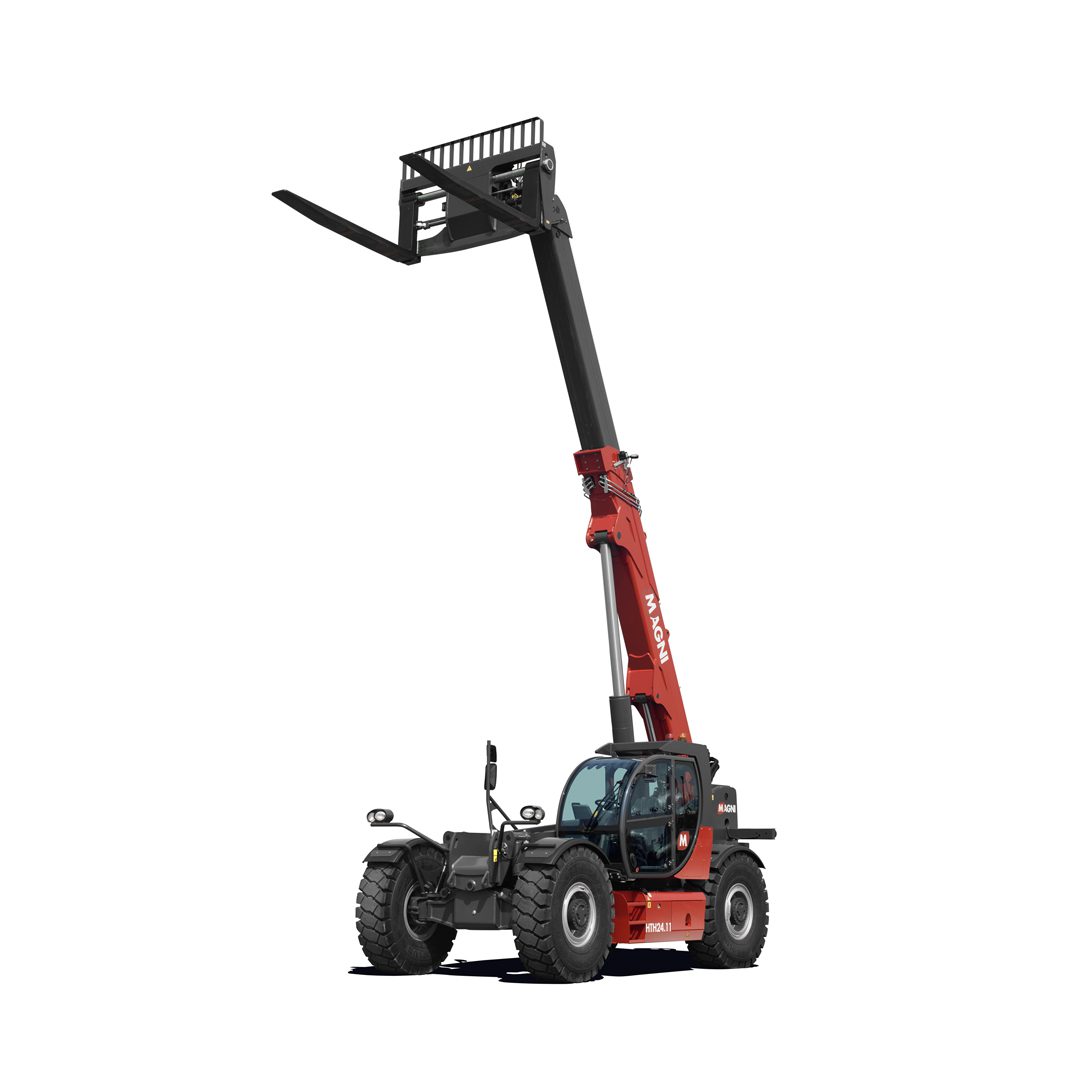

The HTH 24.11 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 24 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains. The comfort and 360° visibility offered by Magni’s patented cab allow the operator to work under the optimum conditions, and help improve safety during delicate movements.

Additional information

Standards met

2006/42/CE : EU Machines Directive
EN 1459-2 : concerning standards for slewing variable-reach trucks
EN 13000 : concerning standards for mobile cranes
ROPS/FOPS Level 2 : on the standard for protection structures
2016/1628 : EU regulation on Stage V engine emissions
