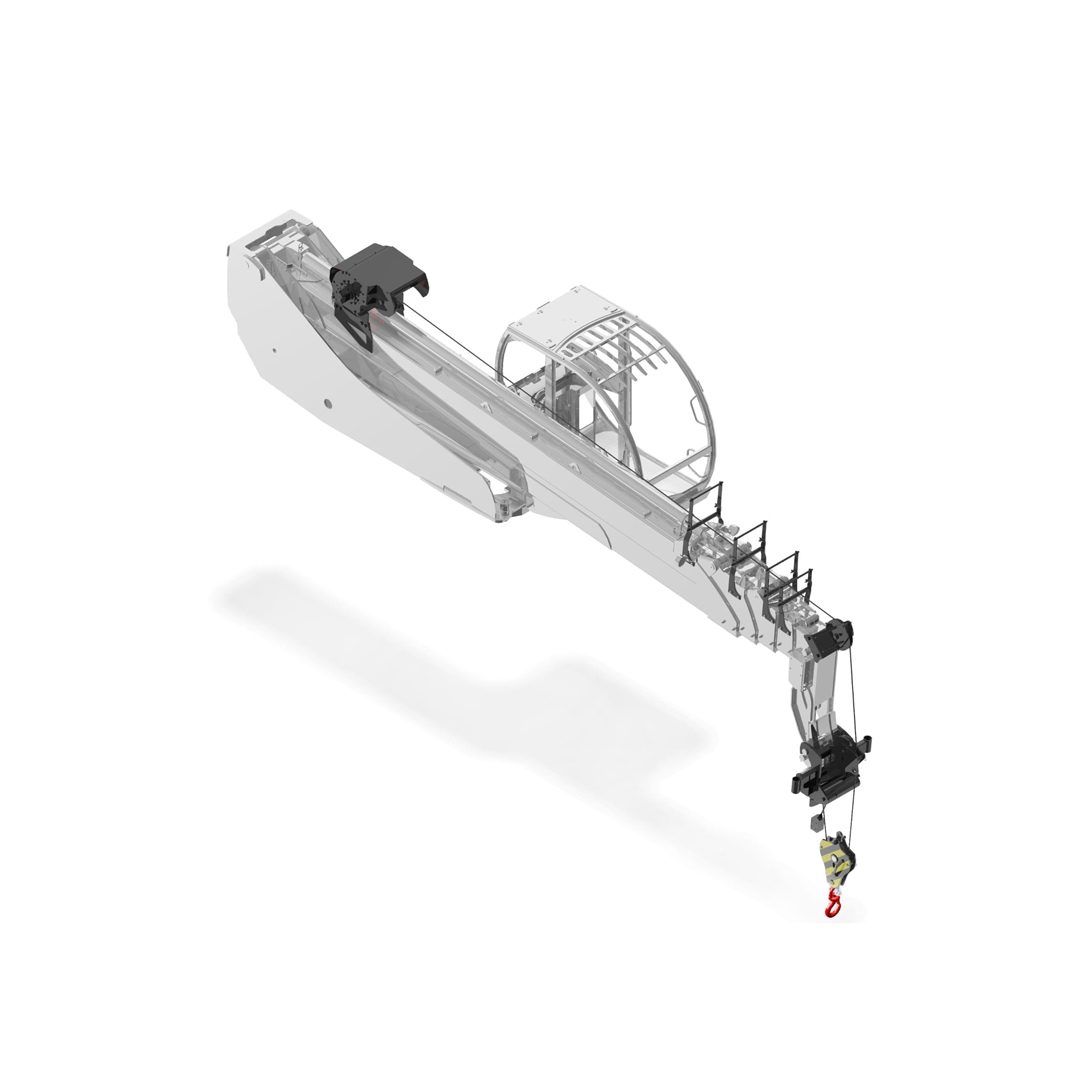

WINCH FITTED AT THE BASE OF THE BOOM 6T [6.31]

Winch with swivelling type-approved hook, which can be configured to two capacities: 6,000 kg dual and 3,000 kg single. Attachment equipped with rope pressure roller and hydraulic limit switch system for rope raising/lowering. Metal storage support included in code. Improved performance compared to the W6 thanks to the configuration of the attachment itself, which has the drum on the boom and not directly fastened to the winch.

Only for RTH 6.30.

SKU: ATT-02-013 Category:

TECHNICAL FEATURES

  • Single pull capacity: 3.000 kg
  • Double pull capacity: 6.000 kg
  • Single pull cable length: 85 m
  • Double pull cable length: 42,50 m
  • Cable diameter: 12 mm
  • Single pull cable extension rate: 32 m/min
  • Double pull cable extension rate: 17 m/min
  • Automatic attachment recognition: Yes
