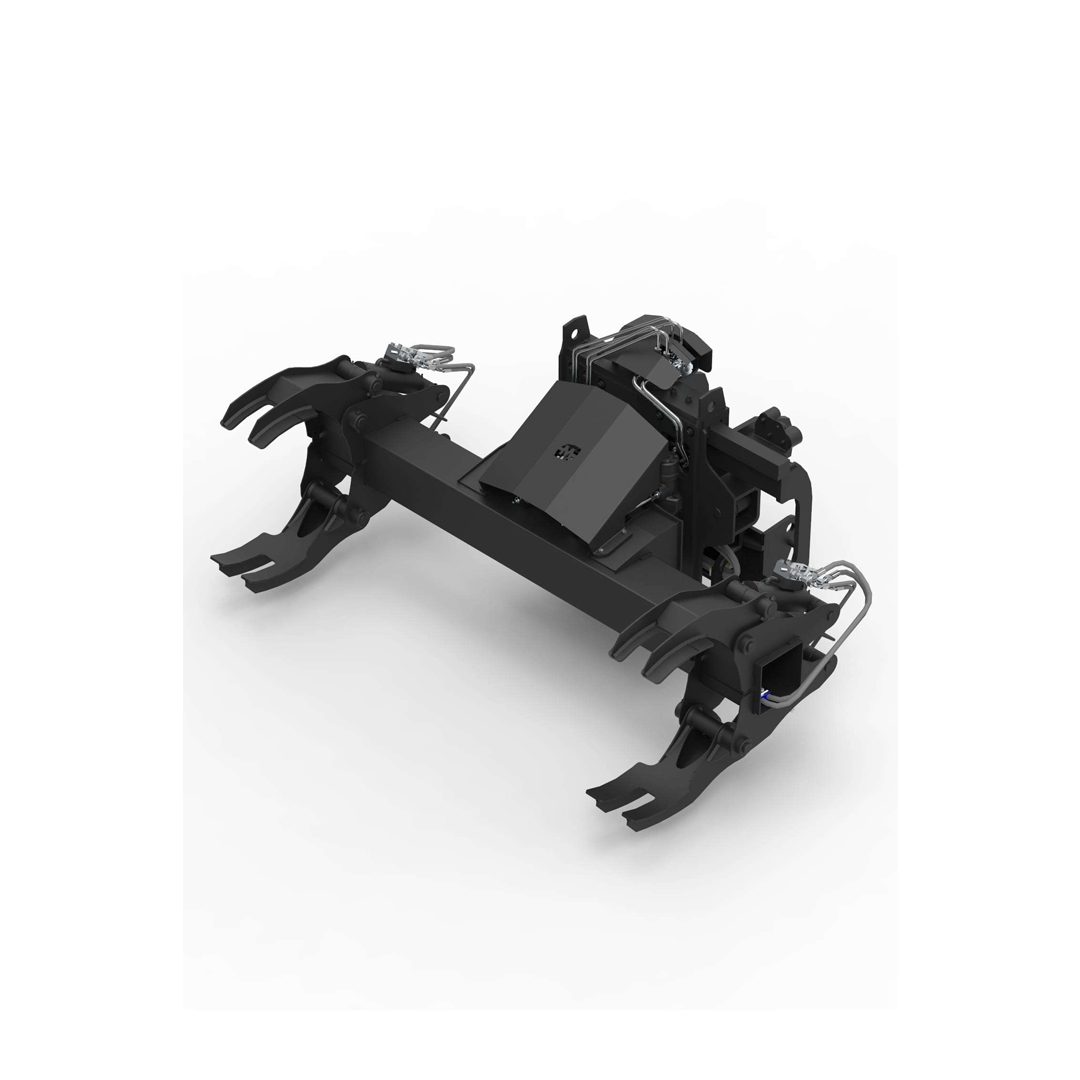

PIPES HANDLER 1,000 KG

Clamp designed to move pipes, load capacity up to 1,000 kg, min ø 242 mm and max. 580 mm. The clamp has three degrees of freedom; 360° rotation, +/- 150 mm side shift and clamps opening/closing.

This attachment is available for RTH, HTH and TH range. For HTH range, it is available only for 10.10/12.10 models.

SKU: ATT-06-009 Category:

TECHNICAL FEATURES

  • Capacity: 1.000 kg
  • Clamp rotation: 360°
  • Minimum diameter: 242 mm
  • Maximum diameter: 580 mm
  • Translation: +/- 150 mm
  • Automatic attachment recognition: Yes
