Technical datasheet

  • Working height: 22.5m
  • Platform height: 20.5m
  • Maximum offset: 18.3m
  • Work in negative: 4m
  • Maximum capacity: 230 kg (2 people) – option: 450 kg (3 people)
  • Platform dimensions: 2.44 x 0.91 m
  • Overall length: 10.4m
  • Storage/transport length: 7.8m
  • Overall width: 2.47m
  • Folded height: 2.7m
  • Storage/transport length: 3.3m
  • Storage/transport height:3.73 m
  • Vertical swing angle of the pendulum: 133° (+68/-65)
  • Platform rotation angle: 180° (+90/-90)
  • Boom travel angle: 90° (+75/-15)
SKU: HT23 RTJ O Categories: ,

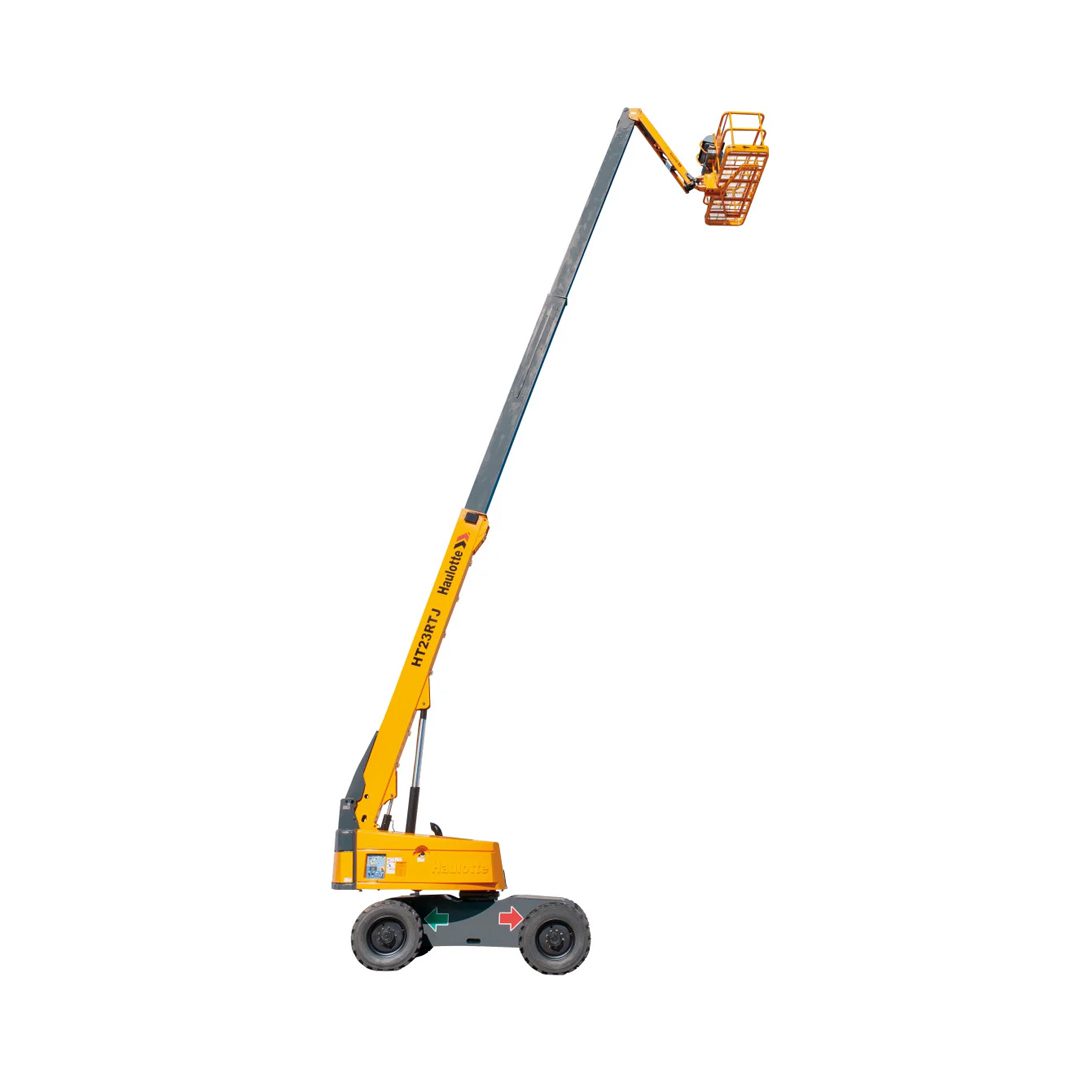

The robustness of the HT23 RTJ O telescopic platform allows it to work in the most restrictive environments and to cope with the most demanding construction sites. The HT23 RTJ O telescopic boom lift incorporates our latest innovations to offer you the safest working at height solutions on the market, improve the productivity of your sites and optimize the availability of your machines. The HT23 RTJ O articulated boom lift is equipped with an oscillating axle which adapts the position of the wheels to the irregularities of the terrain for good grip. Haulotte expertise guarantees you safe work on all its platforms, up to 43m

Additional information

Standard equipment

Haulotte Activ'Lighting System (standard PRO model)
Haulotte Activ'Shield Bar (standard PRO model)
Haulotte Stop Emission System
Haulotte Activ'Screen integrated color screen and diagnostic system
Universal telematics socket
4 wheel drive / 2 (O) or 4 (PRO) steering wheels
Oscillating axle for better stability on uneven terrain
Proportional controls enhancing comfort of use
4 simultaneous movements for optimal productivity
Automatic differential lock for improved off-road capability
Console protection at the top and tool holder in ultra-resistant composite
