• Working height: 11.68 m
  • Platform height: 9.68 m
  • Maximum offset: 6.94 m
  • Point of articulation: 4.74 m
  • Maximum capacity: 250 kg (2 people)
  • Platform dimensions: 1.14 x 0.8m
  • Overall length: 5.36 m
  • Transport length: 3.86 m
  • Overall width: 1.2m
  • Overall height: 1.99 m
  • Transport height: 2.22 m
  • Rear offset: 0 cm
  • Vertical swing angle of the pendulum: 132.2° (+63.5/-68.7)
  • Horizontal swing angle of the pendulum: N / A
SKU: HA12 CJ Categories: ,

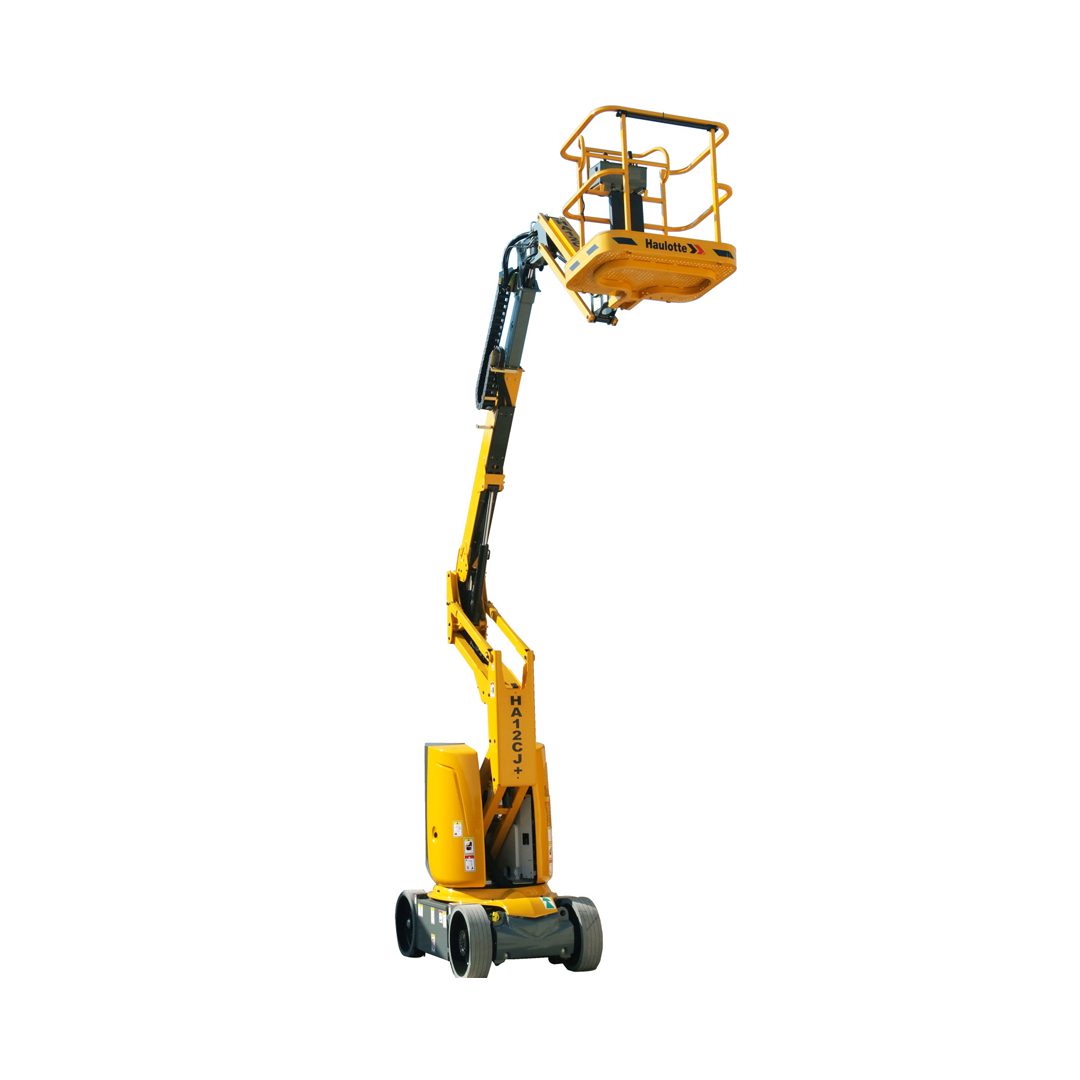

The Haulotte HA12CJ offers 11.68m working height, with an articulated boom lift to access above and over obstacles. This machine can be used indoors and outdoors and is easy to manoeuvre on site. Suitable for indoors and outdoor on slab applications.

Additional information

Standards equipment

2 wheel drive
2 steering wheels
Wheels with non-marking tires
Ergonomic control consoles
Mechanical locking of turret orientation
Automatic platform upgrade
Load limiter in the basket
