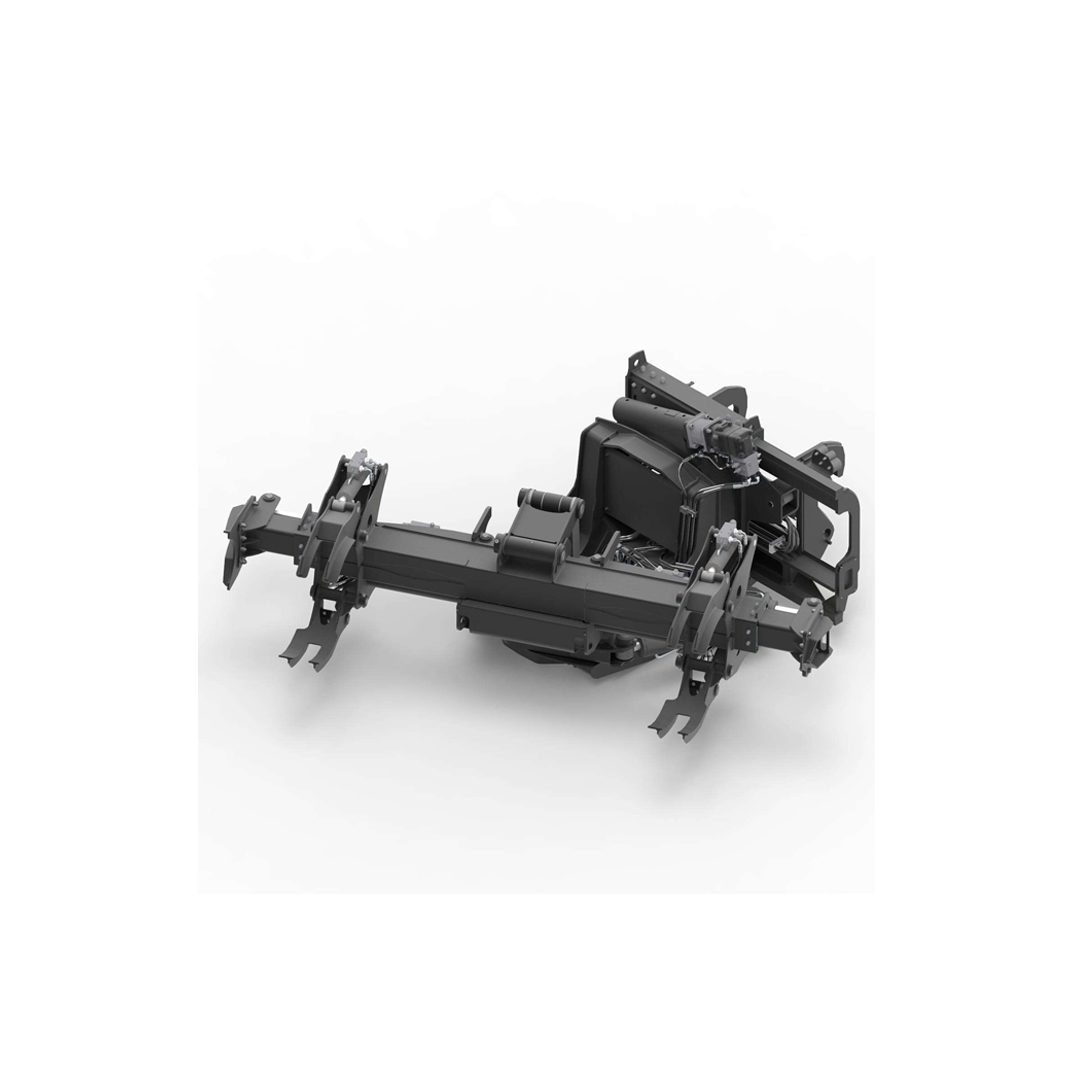

CYLINDER HANDLER 4.5T

Clamp for the maintenance, replacement and movement of large excavator cylinders up to 4,500 kg and max ø 450 mm. Clamp side shift +/- 300 mm, 360° clockwise/anticlockwise clamp rotation, and +/- 27° cylinder rotation. This attachment is provided as standard with its support. Therefore, it is not necessary to purchase the Multi Tool Manipulator (ATT – 08 – 004).

This attachment is available for RTH and TH ranges. For HTH range, it is available only for HTH 10.10/12.10 models.

SKU: ATT-06-011 Category:

TECHNICAL FEATURES

  • Capacity: 4.500 kg
  • Length: 4.420 mm
  • Width: 2.290 mm
  • Clamp rotation: 360°
  • Maximum diameter: 450 mm
  • Cylinder Rotation: 27°
  • Cylinder Lenght (min): 2.740 mm
  • Cylinder Lenght (max): 4.240 mm
  • Translation: +/- 300 mm
  • Automatic attachment recognition: Yes
