5.18

TECHNICAL FEATURES

  • Stabilisers: Pivoting
  • Lifting capacity: 4.999 kg
  • Capacity at maximum height: 3.000 kg
  • Lifting height: 17,40 m
  • Reach: 14,50 m
  • Engine: Deutz TCD 3,6 L4 Stage V
  • Rated power: 55,40 kW (75,30 hp) 2.200 rpm
  • Hydraulic flow: 95 l/min
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6,80 m
  • Width: 2,53 m
  • Ground clearance: 300 mm
  • Unladen weight: 14.400 kg
  • Travel speed: 25 km/h
  • Rotation: 360° (continue)
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes
SKU: 5.18 Categories: ,

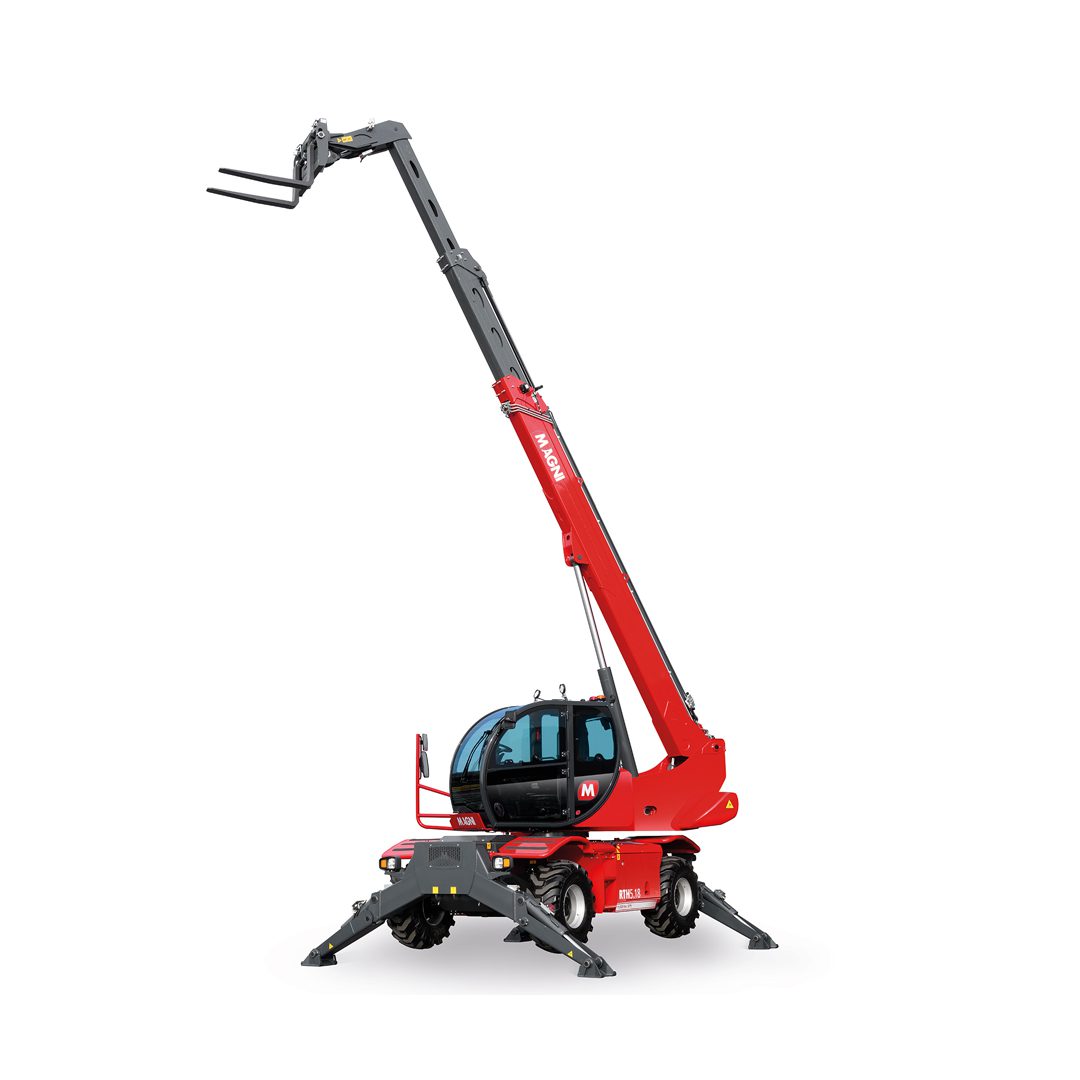

The RTH 5.18 is a rotating telescopic handler that is ideal both for construction sites and for-hire fleets. Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry. It is equipped with pivoting stabilizers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.

Additional information

Standards met

2006/42/CE : EU Machines Directive
2016/1628 : EU regulation on Stage V engine emissions
EN 1459-X : concerning standards on safety requirements for variable reach trucks
EN 280/EN 280-1/EN 280-2 : standards for movable elevating work platforms (if available)
ROPS/FOPS Level 2 : on the standard for protection structures
